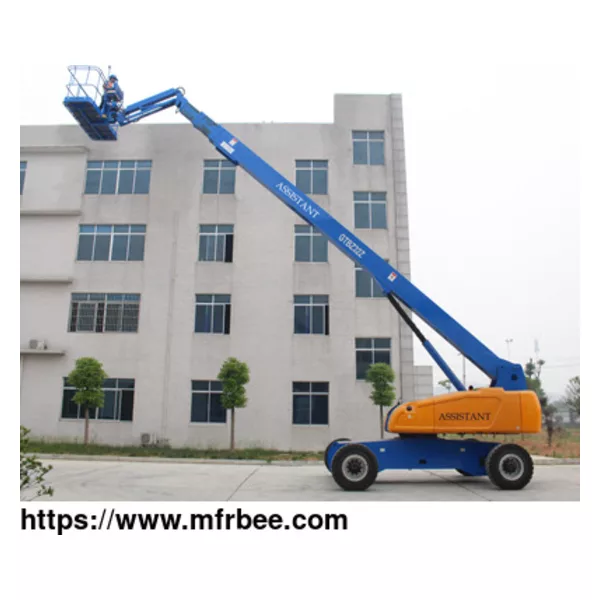

Self propelled Platform 30-32M

FOB Price: USD $50.00 / Piece
Place Of Origin: Shanghai China

Minimum Order: 1

Packaging: NUDE

Delivery: 30DAYS

We are professional Self propelled Platform 30-32M supplier and factory in China.We can produce the product according to your requirements.

Self propelled Platform 30-32M Measurements And Specifications

MODEL GTBZ30 GTBZ32Z

MEASUREMENTS Metric US Metric US

Working height maximum * 32.2m 105ft 33.7m 111ft

Platform height maximum 30.4m 100ft 32m 105ft

Horizontal reach maximum ** 22.9m 75ft 24.4m 80ft

Below ground reach 3.34m 11ft 4.51m 15ft

A Platform length-8ftmodel 0.91m 3ft 0.91m 3ft

Platform length-6ftmodel 0.76m 2ft6in 0.76m 2ft6in

B Platform width-8ftmodel 2.44m 8ft 2.44m 8ft

Platform width-6ftmodel 1.83m 6ft 1.83m 6ft

C Height-stowed 3.08m 10ft 3.08m 10ft

D Length-stowed 13m 43ft 14.02m 46ft

E Width –axle retracted 2.49m 8ft 2.49m 8ft

Width –axle extended 3.35m 11ft 3.35m 11ft

F Wheelbase 3.66m 12ft 3.66m 12ft

G Ground clearance-center 0.43m 1ft5in 0.43m 1ft5in

PRODUCTIVITY

Lift capacity (restricted) 480kg 1056lbs 480kg 1056lbs

Lift capacity (non-restricted) 340kg 748lbs 340kg 748lbs

Platform rotation 160° 160°

Jib rotation — 135°

Turntable Swing 360°continuous 360°continuous

Turntable tail swing -axle retracted 1.82m 6ft 1.82m 6ft

Turntable tail swing -axle extended 1.38m 5ft 1.38m 5ft

Travel speed -stowed 4.4km/h 2.73mph 4.4km/h 2.73mph

Travel speed -raised or extended 1.1km/h 0.68mph 1.1km/h 0.68mph

Gradeability -stowed (4WD/2WD) 42%/30% 42%/30%

Turning radius - axle retracted inside 4.14m 13ft7in 4.14m 13ft7in

Turning radius - axle retracted outside 6.56m 22ft 6.56m 22ft

Turning radius - axle extended inside 2.74m 9ft 2.74m 9ft

Turning radius - axle extended outside 5.85m 19ft 5.85m 19ft

Controls 24V DC Proportional 24V DC Proportional

Solid tires 12.00-20/8.5 12.00-20/8.5

POWER

Power source Commins B3.3 75 HP (56kw)

Auxiliary power unit 24V DC 24V DC

Hydraulic tank capacity 265L 265L

Fuel tank capacity 150L 150L

WEIGHT

2WD 18520kg 40830lbs 18660kg 41140lbs

4WD 18600kg 41000lbs 18740kg 41310lbs

STANDARDS COMPLIANCE EN280、JG/T5101、Q/ADZV001-2008

As a self loading forklift manufacturer, we will do our best to meet all the needs of customers.
