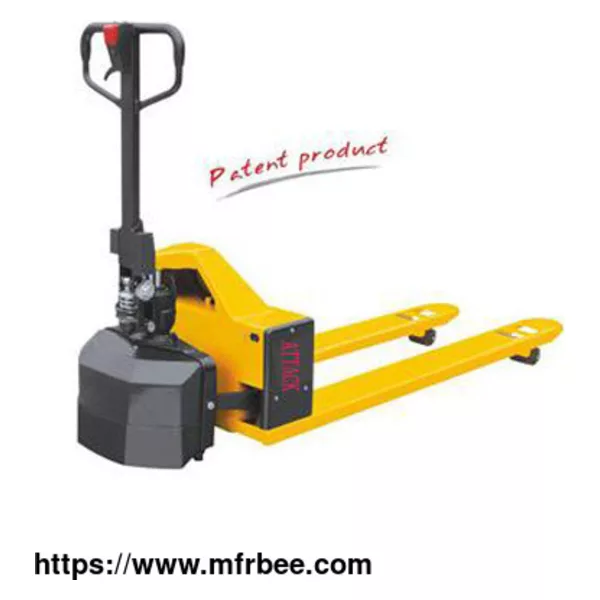

Semi-electric Pallet Truck CBD10A-II
Product Quick Detail
- FOB Price
- USD $50.00 / Piece
- Place Of Origin
- Shanghai China
- Minimum Order
- 1
- Packaging
- NUDE
- Delivery
- 30DAYS
Specifications
Description
: We are professional semi electric pallet truck, semi electric pallet jack CBD10A-II supplier and factory in China. We can produce the product according to your requirements.
Product Features
Two-speed driving system.
Emergency brake switch.
Manual lifting and motor driving.
AC motor,no carbon brush,maintenance free,low noise.
Sealed batteries free of maintenance,safe operation and no pollution.
Built-in charger.
Conform to EN 1757-2.
Parameters of semi electric hand pallet truck
Model CBD10A-Ⅱ
Load Capacity Q(kg) 1000
Load centre distance c(mm) 500
Lowered fork height h13(mm) 85/75
Wheelbase y(mm) 1280/1350
Tyre size,front mm Φ175
Tyre size,rear mm Φ80/Φ74
Max. lift height h3(mm) 200/190
Height of tiller in drive position min./max. h14(mm) 1244
Overall length l1(mm) 1685/1755
Length to face of forks l2(mm) 535
Fork dimensions s/e/l(mm) 45/160/1150(1220)
Width overall forks b5(mm) 520/550/680
Ground clearance,centre of wheelbase m2(mm) 30/20
Aisle width for pallets 1000×1200 crossways Ast(mm) 1885/1955
Aisle width for pallets 800×1200 lengthways Ast(mm) 1935/1955
Turning radius Wa(mm) 1490/1560
Travel speed,laden/unladen Km/h 2.6/3.8
Max.gradeability,laden/unladen % 5-15
Drive motor rating S2 60 min kW 0.5
Battery voltage,nominal capacity K10 V/Ah 24/38
Battery weight kg 26
Service weight (with battery) kg 150
If you want to know more kinds of pallet stacker forklift, please visit our website.
