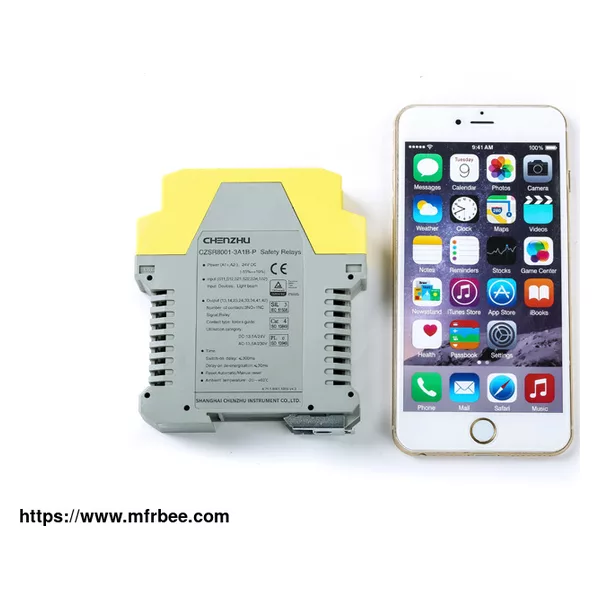

Safety Mat Safety Relay

FOB Price
USD $200.00 / Piece
Place Of Origin
Shanghai, China
Minimum Order
1
Packaging
carton
Delivery
7 working days

Safety mat relay modules provide a high level of fail-safe operation for critical processes and protection. This safety mat and multi-function controllers safety relay offer 2 or 4-wire safety mats/edges. Automatic reset and monitored manual reset are available.

The programmable safety relays support 3 safety output contacts (N/O) and 1 auxiliary output contacts (N/C) or 2NO+1NC+1SO or 2NO(t)+1NC(t).

Features & Advantages of Safety Mat Safety Relay
2-wire safety mats/edge

4-wire safety mats/edge

Automatic reset

Monitored manual reset

Parameter of Safety Mat Safety Relay
CZSR8301-3A1B CZSR8301-3A1B(M) CZSR8302-3A1B CZSR8303-3A1B
Supply voltage 24V DC/AC 24V DC/AC 24V DC/AC 100V~230V AC
Voltage tolerance 0.85~1.1 0.85~1.1 0.85~1.1 -
Current consumption ≤90mA (24V DC) / ≤240mA (24V AC) ≤90mA (24V DC) / ≤240mA (24V AC) ≤90mA (24V DC) / ≤240mA (24V AC) ≤7 VA (220V AC)
Input current ≤50mA (24V DC) ≤50mA (24V DC) ≤10mA (24V DC) ≤10mA (220V AC)
Cable resistance ≤15Ω ≤15Ω ≤15Ω ≤15Ω
Input devices Safety mats (4-wire) Safety mats (4-wire) Safety mats (4-wire) Safety mats, safety edges (2 or 4-wire)
Number of contacts 3NO+1NC 3NO+1NC 3NO+1NC 1.0KΩ ~ 10KΩ
Contact material AgSnO2 + 0.2 µm Au AgSnO2 + 0.2 µm Au AgSnO2 + 0.2 µm Au AgSnO2 + 0.2 µm Au
External contact fuse protection 10A gL/gG NEOZED (NO); 10A gL/gG NEOZED (NO); 10A gL/gG NEOZED (NO); 10A gL/gG NEOZED (NO);
6A gL/gG NEOZED (NC) 6A gL/gG NEOZED (NC) 6A gL/gG NEOZED (NC) 6A gL/gG NEOZED (NC)
Mechanical endurance of contacts ≥107 ≥107 ≥107 ≥107
Utilisation category In accordance with EN60947-5-1: In accordance with EN60947-5-1: In accordance with EN60947-5-1: In accordance with EN60947-5-1:
AC-15, 5A/230V; DC-13, 5A/24V AC-15, 5A/230V; DC-13, 5A/24V AC-15, 5A/230V; DC-13, 5A/24V AC-15, 5A/230V; DC-13, 5A/24V
Switch-on delay ≤300ms ≤150ms ≤300ms ≤300ms
Delay-on de-energisation ≤30ms ≤30ms ≤30ms ≤30ms
Recovery time ≤300ms ≤300ms ≤100ms ≤500ms
Supply short interruption 20ms 20ms 20ms 20ms
EMC EN60947, EN61000-6-2, EN61000-6-4 EN60947, EN61000-6-2, EN61000-6-4 EN60947, EN61000-6-2, EN61000-6-4 EN60947, EN61000-6-2, EN61000-6-4
Vibration Vibration frequency: 10Hz~55Hz; Vibration frequency: 10Hz~55Hz; Vibration frequency: 10Hz~55Hz; Vibration frequency: 10Hz~55Hz;
Vibration amplitude: 0.35mm Vibration amplitude: 0.35mm Vibration amplitude: 0.35mm Vibration amplitude: 0.35mm
Ambient temperature -20℃~+60℃ -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Storage temperature -40℃~+85℃ -40℃~+85℃ -40℃~+85℃ -40℃~+85℃
Relative humidity 10%~90% 10%~90% 10%~90% 10%~90%
Elevation ≤2000m ≤2000m ≤2000m ≤2000m
Overvoltage category Ⅲ Ⅲ Ⅲ Ⅲ
Pollution degree 2 2 2 2
Rated insulation voltage 250V AC 250V AC 250V AC 250V AC
Rated impulse voltage 6000V (1.2/50us) 6000V (1.2/50us) 6000V (1.2/50us) 6000V (1.2/50us)
Dielectric strength 1500V AC, 1min 1500V AC, 1min 1500V AC, 1min 1500V AC, 1min
Clearance and creepage distance In accordance with EN 60947-1 In accordance with EN 60947-1 In accordance with EN 60947-1 In accordance with EN 60947-1
Safety integrity level SIL3 SIL3 SIL3 SIL3
Performance level PLe PLe PLe PLe
Category Cat.4 Cat.4 Cat.4 Cat.4

Contact material AgSnO2 + 0.2 µm Au AgSnO2 + 0.2 µm Au
External contact fuse protection 10A gL/gG NEOZED (NO); 10A gL/gG NEOZED (NO);
6A gL/gG NEOZED (NC) 6A gL/gG NEOZED (NC)
Mechanical endurance of contacts ≥107 ≥107
Utilisation category In accordance with EN60947-5-1: In accordance with EN60947-5-1:
AC-15, 5A/230V; DC-13, 5A/24V AC-15, 5A/230V; DC-13, 5A/24V
Semiconductor output data Number of semi-output:1SO Number of semi-output:1SO
Driving ability:20mA/24V DC Driving ability:20mA/24V DC
Switch-on delay ≤300ms ≤300ms
Delay-on de-energisation ≤30ms(instantaneous) ≤30ms (instantaneous)
0s, 0.5s, 1s, 2s, 3s, 5s(Deleted factory set as 5s)
Recovery time ≤100ms ≤100ms
Supply short interruption 20ms 20ms
EMC EN60947, EN61000-6-2, EN61000-6-4 EN60947, EN61000-6-2, EN61000-6-4
Vibration Vibration frequency: 10Hz~55Hz; Vibration frequency: 10Hz~55Hz;
Vibration amplitude: 0.35mm Vibration amplitude: 0.35mm
Ambient temperature -20℃~+60℃ -20℃~+60℃
Storage temperature -40℃~+85℃ -40℃~+85℃
Relative humidity 10%~90% 10%~90%
Elevation ≤2000m ≤2000m
Overvoltage category Ⅲ Ⅲ
Pollution degree 2 2
Rated insulation voltage 250V AC 250V AC
Rated impulse voltage 6000V (1.2/50us) 6000V (1.2/50us)
Dielectric strength 1500V AC, 1min 1500V AC, 1min
Clearance and creepage distance In accordance with EN 60947-1 In accordance with EN 60947-1
Safety integrity level SIL3 SIL3
Performance level PLe PLe
Category Cat.4 Cat.4
