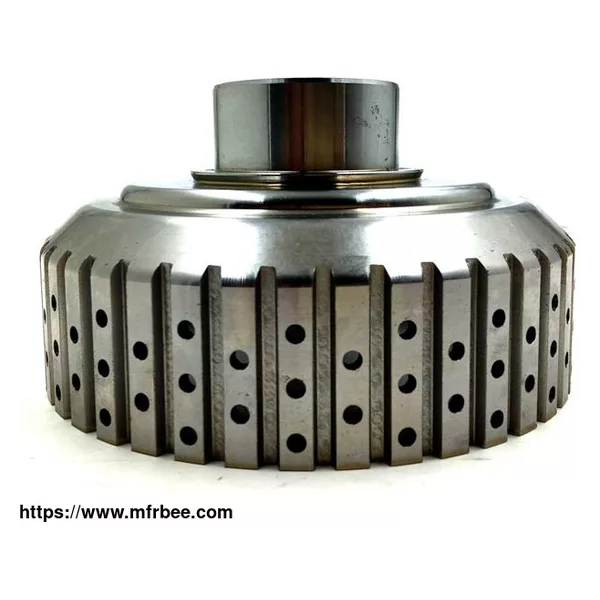

This is the Custom 4 Axis Machining Parts recently produced by us.
It meets the requirements of ISO9001: 2008.
Specification: 43mm*49mm
Raw material: AL6061-T6
Surface Treatment: clear anodizing
Finish: anodizing
Specifications of Custom 4 Axis CNC Machining Parts
Type Diaphragm coupling model Diameter(D) Diameter of the inner hole (Accept customization) Length(L)
Type: Broaching, Drilling, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM Material Capabilities: Aluminum, Brass, Bronze,
Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, plastic
Micro Machining or Not: Micro Machining Model Number: OEM
Size: 43mm*49mm Material: AL6061-T6
Main Process: Aluminum CNC milling Surface treatment: Clear anodizing
Tolerance: +/-0.005mm Supply Ability 1,000,000 Pieces per Month
Different Diaphragm Coupling of Custom 4 Axis CNC Machining Parts
Type Diaphragm coupling model Diameter(D) Diameter of inner hole (Accept customization) Length(L)
Double diaphragm coupling SH-CPDW 19 4 5 6 7 8 27
25 6 6.35 8 10 11 12 31
32 8 10 11 12 14 15 40
40 8 10 11 12 14 15 16 17 18 19 20 44
50 14 15 16 17 18 19 20 22 24 25 57
SH-CPDD 32 6 8 10 40
40 8 10 11 12 14 46
50 12 14 15 16 18 19 20 52
63 15 16 18 19 20 25 58
Single diaphragm coupling SH-CPDW 19 4 5 6 7 8 20
25 6 6.35 8 10 11 12 24
32 8 10 11 12 14 15 29
40 8 10 11 12 14 15 16 17 18 19 20 33
50 14 15 16 17 18 19 20 22 24 25 42
SH-CPDS 32 8 10 11 12 14 15 32
40 8 10 11 12 14 15 16 17 18 19 20 38
50 12 14 15 16 18 19 20 44
63 14 15 16 17 18 19 20 22 24 25 50
As one of cnc machine parts suppliers, we can offer kinds of cnc machining parts for sale, anything you need, please contact us.
