Previous image Next image Number of layers: 16 Surface finish: ENIG Base material: FR4 Thickness: 3.0mm Min. hole diameter:0.35mm size:420×560mm Outer Layer W/S: 4/3mil Inner layer W/S: 5/4mil Aspect Ratio: 9:1 Special process: via-in-pad Impedance Control Press Fit Hole ...
Number of layers: 8 Surface finish: ENIG Base material: FR4 Outer Layer W/S: 4/3mil Inner layer W/S: 5/4mil Thickness: 1.6mm Min. hole diameter: 0.2mm Special process: half hole Advantages Of 8 Layer ENIG Half Hole Custom Made PCB Own lamination process to convenient production ...

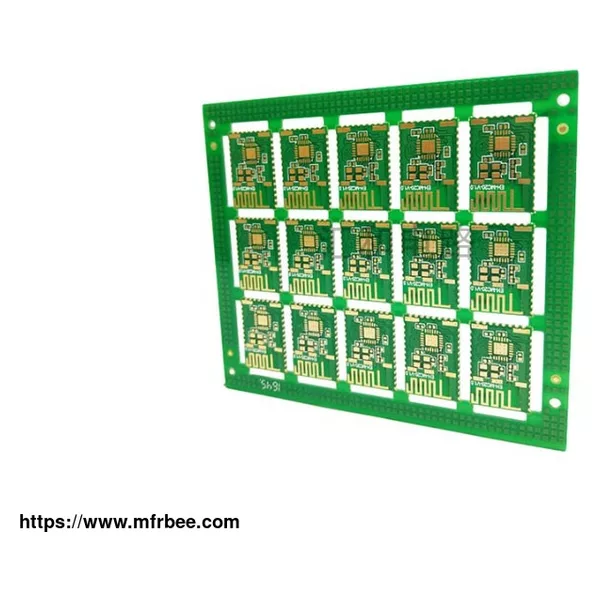

Number of layers: 4 Surface finish: ENIG Base material: FR4 Outer Layer W/S: 6/4mil Inner layer W: 21mil Thickness: 0.4mm Min. hole diameter: 0.2mm Special process: impedance control+half hole Advantages Of 4 Layer ENIG Impedance Control Half Hole PCB Electric Circuit Board Own ...
