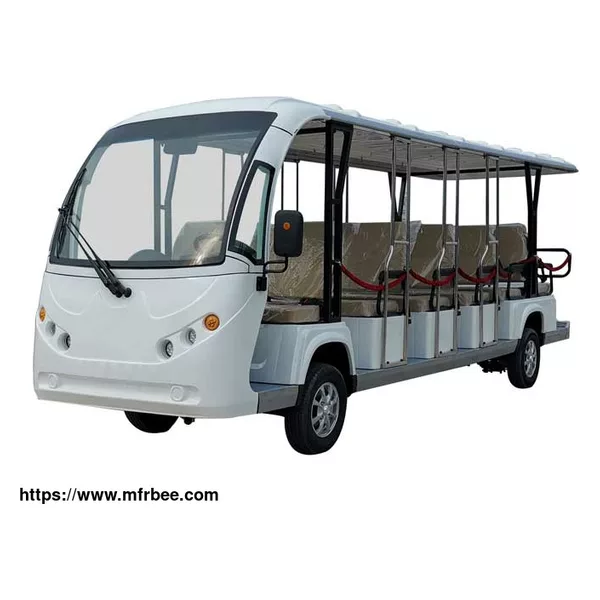

17 Seater Electric Shuttle Bus

Place Of Origin: Dezhou City. Shandong Province

Minimum Order: 1

Packaging: SKD

Delivery: 7-15 working days

17 seats, equipped with a high-power electric drive system, the climbing ability exceeds 47%, and the electric tourist car, electric tourist bus can realize start-stop on full-load slopes.

Specification of 17 Seater Electric Shuttle Bus

Technical Parameters

Overall Dimension 5900*1500*2000mm

Passengers Capacity 17

Max. Speed 30km/h

Max. Travelling Range 80-100km

Slope Climbing Capacity 15%

Turning Radius 6.5m

Ground Clearance 145mm

Brake Distance 5m

Wheelbase 3600mm

Front/Rear Tread 1300/1300mm

Weight 1020kg

Electric System

Motor 5kW AC

Controller 48V, 400A

Battery Type 72V, 100Ah, 6pcs

Steering Continuously variable transmission system

Charger Intelligent high-frequency car charger

Charging Time 8 hours

Motivation Control

Braking System Front disc and rear drum brake,

dual-circuit hydraulic brake, vacuum brake booster pump

Front-axle And Suspension Front axle MacPherson independent suspension

coil spring

Rear-axle And Suspension Integral rear axle leaf spring

Tire 155R12, Aluminum alloy rim

Exterior

Dashboard Digital display LCD instrument

(including voltage, vehicle speed, mileage, light, front and rear reversing signals, etc.)

Light Combined headlights, combined rear taillights

Seat High-density sponge + durable leather fabric

Body Material Steel frame + ABS engineering plastic molding material

We can offer kinds of electric golfcart for sale, if you have needs to buy electric golf carts china, please leave us a message.
