Smart 32 Nucleic Acid Extraction Instrument

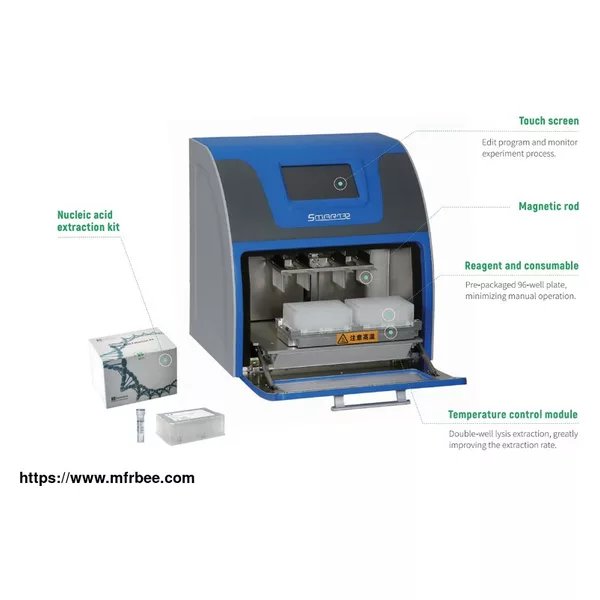

Smart 32 is a nucleic acid extraction instrument adopting magnetic bead technology. Combined with Daan's extraction kit, Smart32 DNA & RNA extraction instrument can extract and purify 32 samples in 18 minutes. The user can edit experiment procedures, monitor experiment conditions, turn on and off the UV light disinfection functions through the touch screen.

Nucleic Acid Extraction Instrument Features

Fast: 32 samples can be extracted in about 18 minutes.

Safe: UV light, high-precision motion control, and disposable consumables.

Double independent heating modules improve the extraction rate of this nucleic acid extraction system.

Editable experiment procedure.

Nucleic Acid Extraction Machine Specification

Throughput 1-32 samples

Reaction volume 20μL－1000μL

Temperature range 30-90℃

Instrument connector RS232/RJ45/USB, etc.

Operation humidity range ≤80%

Magnetic beads recovery rate ≥95%

Dimension(mm)（L×W×H） 435×340×450

Net weight(kg) 29

Nucleic Acid Extraction Instrument Applications

Smart32 automated nucleic acid extraction machine intended to be used for the extraction, purification of nucleic acid in a sample of human body in laboratory environment.

Magnetic bead is a simple and reliable method of purifying nucleic acid Under optimized conditions, nucleic acid selectively binds to the surface of magnetic beads, while other contaminants stay in solution. After washing and elution, purified nucleic acid can then be used directly in molecular biology applications.

Nucleic Acid Extraction Equipment Automation

Smart 32 is a nucleic acid extraction instrument adopting magnetic bead technology. Together with Daan rapid extraction kit, it can extract and purify 32 samples in 18 minutes. The user can edit experiment procedure, monitor experiment conditions, open or close the ultraviolet light disinfection functions through the touch screen.

Using the magnet stick on the lab chamber, transfer the magnetic beads adsorbed with nucleic acid into different reagents hole. Then use the stirring set to mix liquid rapidly and repeatedly, make the liquid and magnetic beads mix evenly. Going with cell lysis, nucleic acid adsorption, washing and elution, eventually it get nucleic acid of high purity.
