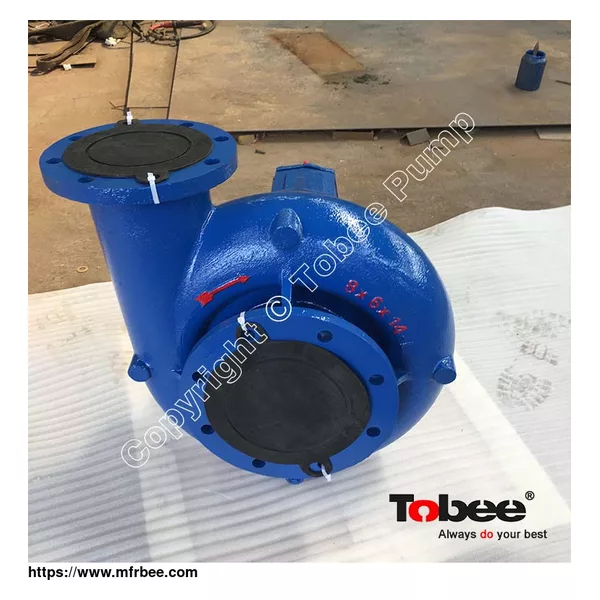

Tobee® 8x6x14 Magnum Centrifugal Pump of Frac Tank

Tobee® Mission Magnum I Pumps

SPECIFICATIONS:

• Sizes from 3x2x13 to 10x8x14

• Flow rates from a few gallons per minute up to 2,600 GPM

• Head pressure up to 550 feet

• Best utilized for applications requiring up to 200 HP

Design Features:

• Up to 50% more capacity from the 8 x 6 pump
• Optimum pressure at low operating speeds
• Thicker casing to extend life from wear and corrosion
• New impeller design to reduce loads and extend bearing life
• Larger, stronger shaft to reduce deflection
• Replaceable shaft sleeve in packing wear area
• Larger, long-life bearings
• Replaceable stuffing box cover
• Smoother, non-turbulent flow throughout casing

Typical Configurations:

3x2x13 6x5x14
4x3x13 8x6x11
5x4x14 8x6x14
6x5x11 10x8x14

Typical Applications:

• Mud pumping – offshore/onshore
• Solids control
• Dredging
• Leveling or Rig Platform (ballast)
• Barite, ferric oxide, and mineral oil
• Base drilling muds
• Glass fibers
• Sugar processing
• Ash or coal conveyers

• Cement
