AN-TGD05 series high power led flood light, launched in 2022, is one of Anern led outdoor lights specific for engineering lighting. With led modular designs, these high-power floodlights can
effectively solve the heat dissipation problem of high-power lamps. Meanwhile, each module is equipped with a special optical design lens, which can be selected with a wide-angle or narrow-angle
illumination range according to the lighting requirements. In addition, this type of LED floodlight can also be used in squares, football courts, basketball courts, gymnasiums, and other places
with higher lighting requirements. If you are interested in the big flood lights, please connect with us. As a professional led flood lights supplier, Anern can also provide specific lighting
solutions according to the detailed information of the application site.

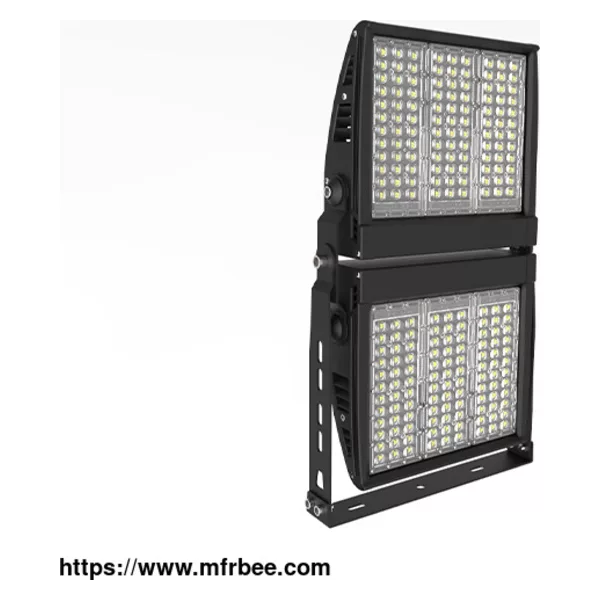

The Details of Big High Power Led Flood Light (TGD05)
High Power LED Flood Light
Equipped with Philips 5050 led chips, the highest luminous efficiency of these led flood lights wholesale can reach 150lm/w.
High Power Flood Lights
With a built-in waterproof driver and housing protection, these LED high-power flood lights can be placed under circumstances with low temperature and its waterproof level up to IP66.
High Power LED floodlight
With streamlined housing design, smaller cross-sectional area, lower wind resistance.
LED High Power Flood Light
Using Japanese optical design lens, with features of high precision, high light transmittance, no yellowing, UV resistance.
The Specification of High Power Led Flood Light (TGD05)
Model LED chip Flux CRI Working Voltage
AN-TGD05-200W LED Flood Light
Lumileds 150lm/w >70 AC85-265V
AN-TGD05-300W LED Flood Light
Lumileds 150lm/w >70 AC85-265V
AN-TGD05-400W LED Flood Light
Lumileds 150lm/w >70 AC85-265V
AN-TGD05-500W LED Flood Light
Lumileds 150lm/w >70 AC85-265V
AN-TGD05-600W LED Flood Light
Lumileds 150lm/w >70 AC85-265V
AN-TGD05-800W LED Flood Light
Lumileds 150lm/w >70 AC85-265V
AN-TGD05-1000W LED Flood Light
Lumileds 150lm/w >70 AC85-265V
The Installation Instruction of High Power Led Flood Light(TGD05)
Make holes on the mounting surface as required and fix the lamps firmly.
Use a hex wrench to loosen the screws on both sides of the plug lock bracket, then adjust to a proper angle and lock it.
Connect the neutral wire, live wire and ground wire of the lamp to the city wire as required.
Anern solar provides the most ideal outdoor LED lighting and indoor LED lighting solution which can meet the requirements for uses in different application conditions and environmental conditions.
