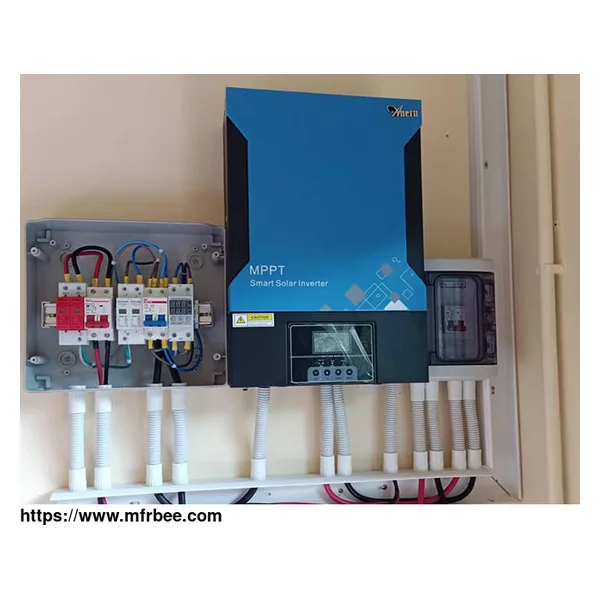

Mobile Display Hybrid Solar Inverter
Product Quick Detail
- FOB Price
- USD $300.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 100
- Packaging
- carton
- Delivery
- 7 Days
Specifications
The mobile display solar inverter is designed by our company and is an improved product based on the original product. In addition to retaining all the original functions and parameters of the
SCI02-PLUS series, the appearance of the series has been redesigned, and a unique removable display screen currently on the market has been added. This function allows you to disassemble the
display on the hybrid solar inverter and equip it with extension cords of different lengths according to your needs, which can be installed anywhere in your home.
The Details of Mobile Display Hybrid Solar Inverter
Built-in 100A MPPT controller, pure sine wave solar inverter, output power factor 1.
Both solar storage batteries and solar lithium batteries can be directly connected, and the battery balancing function can optimize battery performance and extend battery life.
Both solar storage batteries and solar lithium batteries can be directly connected, and the battery balancing function can optimize the battery performance and extend battery life of this hybrid
inverter for solar system.
It can be used alone to supply the load with solar panels or city electricity, and it can be used normally without a battery.
Detachable LCD control module, and can be converted to remote panel use, with extension cords of different lengths.
The Specification of Mobile Display Hybrid Solar Inverter
Model SCI02-MD-3500 SCI02-MD-5500
RATED POWER 3500W 5500W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 7000VA 11000VA
Efficiency (Peak) PV to INV. 97%
Efficiency (Peak) Battery to INV. 94%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY & AC CHARGER
Battery Voltage 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC
Overcharge Protection 33 VDC 63 VDC
SOLAR CHARGER
Maximum PV Array Power 5000 W 6000 W
MPPT Range @ Operating Voltage 120 ~ 500 VDC
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum Charging Current 100A
Maximum Efficiency 98%
Now the hybrid solar inverter price is low, anything you need, please contact us.
