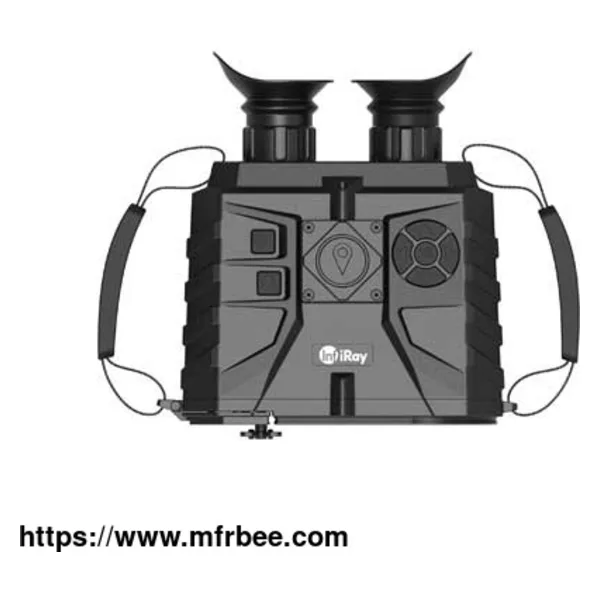

PT-PRO Thermal Heat Binoculars

Place Of Origin: Yantai 264006, P.R.China

Minimum Order: 5

Packaging: carton, pallet

Delivery: 7-15 days

PT-PRO Thermal Rangefinder Binoculars

PT-PRO Thermal Heat Binoculars

PT-Pro combines infrared, visible light, and rangefinding functions, applicable to target observation, locating, identification, and calibration.

Infrared: 1024×768/14μm or 640×512/12μm

Visible light: 1440×1080/4μm

Features of PT-PRO Thermal Heat Binoculars

1. Infrared and visible light dual channels, binocular observation;

2. 1024×768/14μm or 640×512/12μm infrared detector, 1080P HD CMOS sensor;

3. 1280×1024 HD OLED display;

4. Recognition distance of vehicle up to 3000m;

5. Photo taking and video recording, built-in memory that can store original images (not fewer than 20,000) and videos (lasting no less than 4 hours), playback of history videos on a local device;

6. Built-in GPS/Beidou module, digital magnetic compass, eye-safe laser rangefinding module, self-positioning, and target locating supported;

7. Laser rangefinding scope up to 3000m;

8. Ingress protection rating: IP67.

Video of PT-PRO Thermal Heat Binoculars

Applications of PT-PRO Thermal Heat Binoculars

Specifications of PT-PRO Thermal Heat Binoculars

PT-Pro PT-Pro (640)

Infrared Visible light Infrared Visible light

Resolution 1024×768/14μm 1440×1080/4μm 640×512/12μm 1440×1080/4μm

Recognition Distance (People) 1400m 2130m 1600m 2130m

Recognition Distance (Vehicle) 2300m 4600m 2700m 4600m

FOV 11.4°×8.5° 5.2°×3.8° 6°×4.7° 5.2°×3.8°

Frame Rate 30Hz 25Hz 30Hz 25Hz

NETD ≤40mK — ≤40mK —

Resolution 1280×1024, 0.61 inch 1280×1024, 0.61 inch

Laser Pointer Supported Supported

Laser Rangefinding Measuring range: 50m～3000m; accuracy: ±2m Measuring range: 50m~3000m; accuracy: ±2m

Positioning GPS and Beidou modules GPS and Beidou modules

Diopter -4~4 -4~4

Observation Mode Infrared, visible light, PIP Infrared, visible light, PIP

Operating Time ≥6h ≥6h

Battery 18650×4 18650×4

Weight ≤1520g ≤1520g

Dimensions 210×175×80 (mm) 210×175×80 (mm)

Ingress Protection Rating IP67 IP67

Operating Temperature -40°C~+55°C -40°C~+55°C

Storage Temperature -55°C~+70°C -55°C~+70°C

As a reliable ir camera supplier, we will do our best to meet all the needs of customers.
