RTC2121W WLP Uncooled Infrared Detectors
Product Quick Detail
- Place Of Origin
- Yantai 264006, P.R.China
- Minimum Order
- 5
- Packaging
- carton, pallet
- Delivery
- 7-15 days
Specifications
RTC2121W WLP Uncooled Infrared Detectors

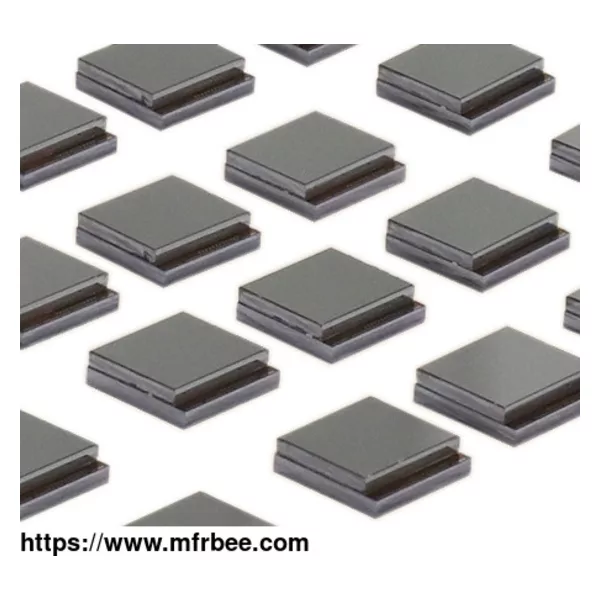

RTC2121W WLP Packaged Uncooled Infrared Detector employs a self-developed 12μm uncooled VOx thermal imaging sensor capable of 256×192 resolution. Available in a WLP package, the RTC2121W detector
is suitable for micro-module applications with features such as affordability, low power consumption, compactness, lightweight, and long service life.
Resolution: 256×192
Pixel size: 12μm
Features of RTC2121W WLP Uncooled Infrared Detectors
1. VOx microbolometer
2. Low power consumption:<45mW
3. Package weight: ≤0.3g
4. High sensitivity: NETD<50mK
5. Thermal time constant:<10ms
6. WLP package
Applications of RTC2121W WLP Uncooled Infrared Detectors
Specifications of RTC2121W WLP Uncooled Infrared Detectors
Item Specifications
Model RTC2121W
Sensor Technology VOx microbolometer
Spectral Range LWIR, 8-14μm
Pixel Pitch 12μm
Array Format 256×192
Operability ≥99.5%
NETD <50mK (@f/1.0,25Hz,300K)
Thermal Time Constant <10ms
Frame Rate ≤30Hz
Power Consumption <45mW (@25Hz,25ºC)
Output Format Standard 8-bit parallel output
Output Polarity Black-hot
Wide Dynamic Range Mode Support -40~600ºC temperature measurement (@f/1.0)
Read Mode：rolling Shutter Mode Line-by-line
Input Interface I2C interface, write configuration, and OOC data
Detector ID Built-in detector ID readable
Mirroring X and Y directions
Non-uniformity Correction On-chip 4-bit non-uniformity correction
Operating Temperature Range -40°C~+85°C
Package Type 24-pin WLP vacuum package
Size 5.42×5.29×1.55mm³ (without locating pin)
Weight ≤0.3g
As one of infrared camera manufacturers, we will do our best to meet all the needs of customers.
