TJH-1 Weighing Load Cell
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

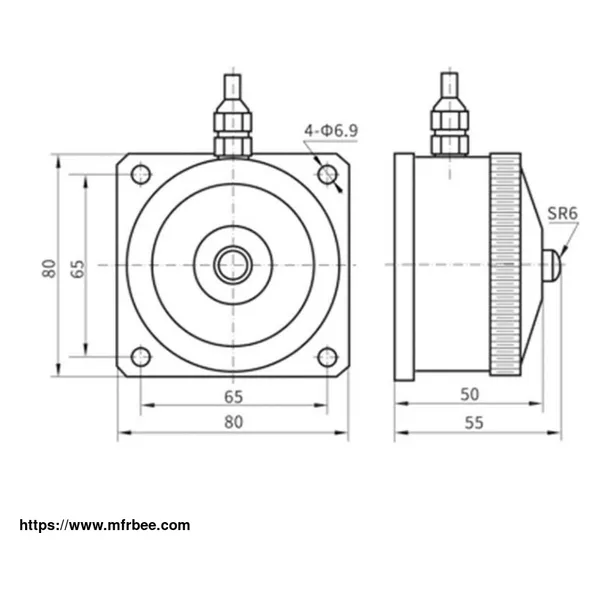

TJH-1 is a kind ofload cell sensor for weight measurement. These classic products(TJH-1 weighing load cell) are mature and reliable and have obtained utility model patents. The unique T-type overload protection device has the strong anti-overload capability. It has a bottom plate with 4 mounting holes for easy installation. Optional integrated standard signal output, such as 4~20mA or 0~5V three-wire load cell amplifier. Suitable for belt scales, batching scales, etc.
Specifications of TJH-1measurement of force using strain gauge load cell
| Technical Parameter | |
| Rated Load | 30N~1.5 kN |
| Comprehensive Precision | 0.05~0.1% FS |
| Sensitivity | 2.0 mV/V |
| Creep | ±0.05% FS/30min |
| Zero Output | ±1% FS |
| Temperature Effect On Zero | ±0.05% FS/10℃ |
| Temperature Effect On Output | ±0.05% FS/10℃ |
| Operating Temperature Range | -20~+65 ℃ |
| Input Resistance | 380±10 Ω |
| Output Resistance | 350± 3 Ω |
| Insulation Resistance | ＞5000 MΩ |
| Load Cell Mode Of Connection | Input+: Red |
| Input-: Black | |
| Output+: Green | |
| Output-: White | |
| Safe Load Limit | 150% FS |
| Bridge Voltage | Reference 10V DC |
| Material | Alloy Steel |
| Amplifier Mode of Connection | Power: Red |
| Public Side: Blue | |
| Output: White |
Features of TJH-1 Weighing Load Cell
0.05% FS accuracy
Compression only load cell
Comes with indenter and mounting base plate
Unique T-type overload protection
Optional built-in transmitter
Eccentric load compensated
Utility model patents
