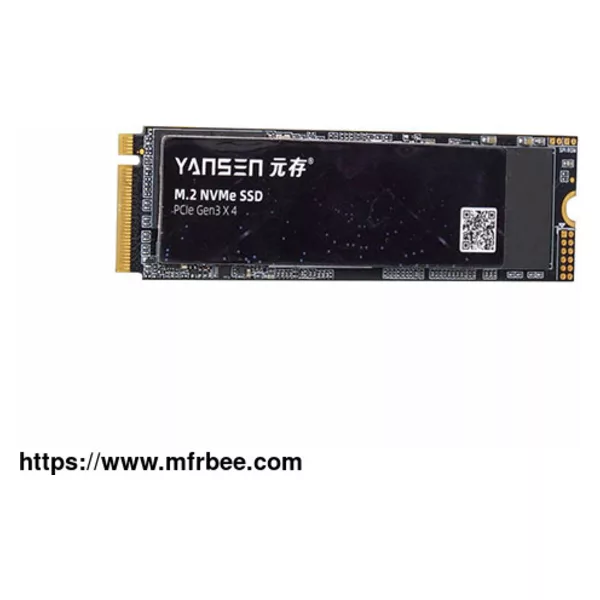

M.2 2280 (NVME）YSEX PRO

Yansen YSEX PRO is an NVME Enterprise SSD designed as the standard M.2 form factor with PCIe interface and 3D TLC NAND Flash, capacity range is 256GB~2TB YSEX PRO supports PCIe Gen III x4, and it is compliant with NVMe 1.3 providing excellent performance. YSEX PRO with heat-spreading design dissipate heat generating from IC making SSD perform more stably. With sophisticated error detection and correction (ECC) functions, the module can ensure full End-to-end Data Path Protection that secures the data transmission between host system and NAND Flash.

Yansen YSEX PRO provides ultra-speed and high IOPS and offers maximum capacity up to 2TB, making the SSD China optimal for server and heavy data workload applications.

Characteristics Of YANSEN 1TB Enterprise SSD and 2TB Enterprise SSD M.2 2280(NVME) YSEX PRO

Product Model YSEX PRO

Flash Type TLC

Capacity 256GB~2TB

Sequential Read Up to 3600MB/s

Sequential Write Up to 3400MB/s

4K Random Read 186200 IOPS

4K Random Write 186100 IOPS

Operating Temperature 0°C ~ +70°C

Storage Temperature -20°C ~ +75°C

Humidity 5%-95% RH non-condensing

Shock 1500G/0.5ms

Vibration 80Hz~2000Hz/20G

Operating Voltage DC 3.3V±5%

Power Consumption 8.6W

Dimensions L80.0mm*W22.0mm*H2.1mm ±0.1mm

MTBF 2 million hours

Features of YANSEN Enterprise SSD M.2 2280(NVME) YSEX PRO

Capacity: 128GB~2TB

Interface: SATA3.0(6Gb/s)、SATA2.0(3Gb/s)

Support Dynamic Power Management

Support Active and Passive Garbage Collection

Voltage detect function protects saved data

Support NCQ

Support error check and correction

Support TRIM command

Support Power-off Protection

If you are looking for a reliable SSD manufacturer, please contact us, and we will be your best partner.
