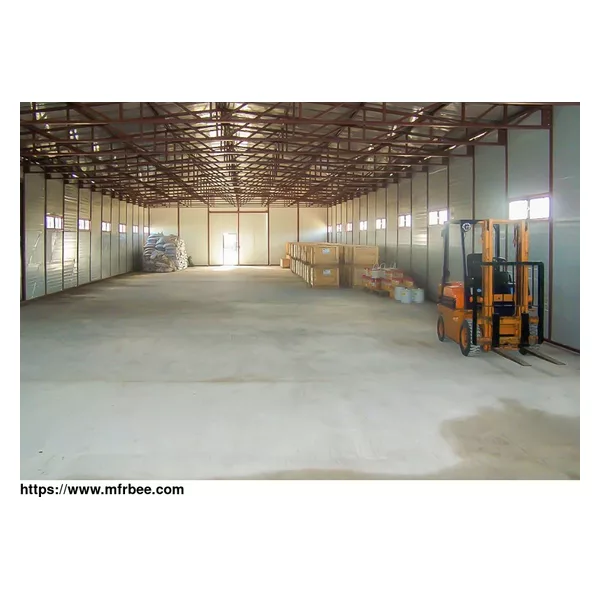

Prefab Steel Warehouse
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- Handan City, Heibei Province.
- Packaging
- Seaworthy Package
- Delivery
- Winthin 15days after receipt downpayment
Specifications
Prefab metal warehouse building is a kind of new concept of environmental protection and economic movable house with light steel as the framework, sandwich board as the enclosure material, with
standard module series for space integration, members are connected by bolts.
It can be assembled and disassembled conveniently and quickly, realizing the general standardization of temporary buildings, establishing the concept of environmental protection, energy saving,
fast and efficient construction, and making temporary houses enter a series of development, integrated production, supporting supply, inventory, and availability. Styling product stage used in
multiple turns.
At present, in our product range, K Type Steel Prefab House and T type Steel Frame House is available as the warehouse purpose for you selection.
Product Parameters of China Steel Frame Warehouse
Prefab Steel T Type Warehouse/Garage/Workshop Technical Specification
No. Sort Name Specification
1 Product Type Degree of Standardization custom-made product,design and manufacture according to clients requirement
2 Size Length (m): No limited, increase expansion joint when length more than 200m.
3 Width(m): single span should be less than 12m, an arbitrary width could make by union spans
4 Heigth(m): single floor≤5m, two or three floors, average height ≤4m
5 Roof slope: slope is 1:10~1:5
6 Floors: less than 3 floors
7 Standard equipment Ground channel Galvanized steel panle compression, thickness is 0.8mm
8 Post Inside post is steel square pipe,material is Q235,components surface make antirust process,and decorate with color steel compression parts.
9 Roof beam roof truss consist of thin sharpe steel by welding,component surface make antirust process
10 Purlin purlin is Ctype steel,material is Q235,components surface make antirust process.
11 Wall beam wall beam is Ctype steel or square pipe,material is Q235,component surface make antirust process
12 Floor made of floor master beam, secondary beam and floor surface plate(plywood)
13 wallboard 50~150mm thickness double surface color steel sandwich panel,white color
14 roof board 50~150mm thickness double surface color steel corrugated sandwich panel,blue or red color
15 door color steel sandwich panel door,size:750mm*2000mm;
16 window PVC sliding window, with steel screen.
17 Options Ceiling mineral wool acoustic panel,aluminium buckle panel,PVC ceiling
18 Elevation floor Design based on local weather condition.
19 Canopy color steel sheet or color steel sandwich panel canopy
20 door compound wooden door,security door,aluminium alloy door
21 Electrical accessories Supply plan,design and construction according to relevant national norms(220V,50Hz,with lamp, switches and multi-function sockets.)
22 Water plumbing accessories Supply plan,design and construction according to relevant national norms
23 Sanitary ware Supply according to customer needs
24 Furniture and electric appliance Supply according to customer needs
25 Design technical data Roof dead load 0.3KN/sqm
26 Roof live load 0.5KN/sqm
27 Floor dead load 0.5KN/sqm
28 Floor live load 2KN/sqm
29 Wind load 12degree,120km/h(strengthen the steel frame when the wind is bigger than this data)
30 Earthquake resistant intensity 8 degree
31 Used for temperature Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25)
32 Installation Installation tools electric drill, electric hammer,spanner,screwdriver,pulling rivet etc, house installation need electric power.
33 Installation efficiency Four skilled labor one day can erect 40m2's house body
34 Transport container each 40ft container could load 130~150Sqm house body material
Advantages of Prefabricated Warehouse Steel Structure
Steel structure, can be built into 60-240 square meters, clean health, indoor facilities, mobile home beautiful appearance, novel design, elegant, energy-saving environmental protection, heat
preservation performance is good, warm in winter and cool in summer, typhoon and earthquake resistant living comfortable warmth, trailer design according to customer requirements installation, its
stability is strong, long service life.
As a warehouse/garage/workshop, especially suitable for the site, easy to assemble, easy to move.
As a steel frame warehouse supplier, we can offer kinds of special steel frame warehouse design for clients, and the steel frame warehouse price is reasonable, if you have needs, please contact us.
More kinds of steel tube house frame, please visit our website.
