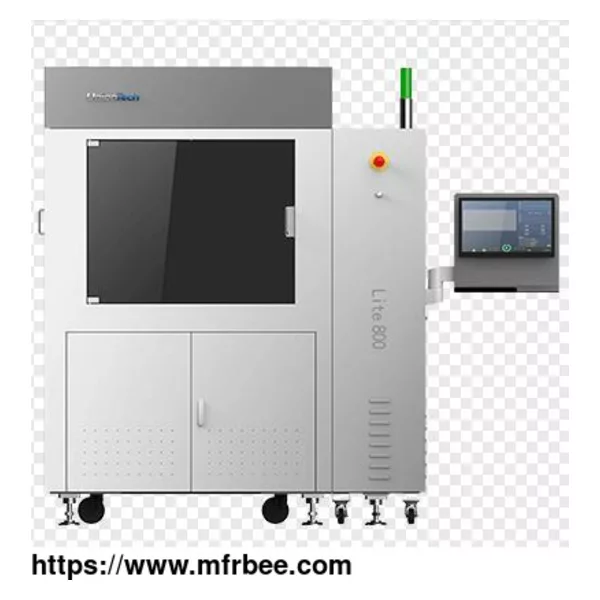

Lite800 Industrial SLA 3D Printer

Industrial SLA 3D Printer for Sale

Lite800 is an affordable large-format professional SLA 3D printer, compatible with a variety of 3D printing materials for large-batch printing. High efficiency, high precision, high stability. Using variable spot and split design to provide a one-stop solution for large-format integral printing, small-format for large-batch printing.

Lite800 Technical Data

Build Volume 800 × 800 × 550 mm 31.5 × 31.5 × 21.7 in

Accuracy Dimension <100 mm: ±0.15 mm

Dimension ≥100 mm: ±0.15% x Dimension

Layer Thickness 0.07-0.25 mm

Laser 355 nm, solid-state frequency tripled

Nd: YVO₄

Beam Focus Dynamic & Variable

Beam Size 0.12-0.8 mm

Material Compatible with commercial available resins for 355 nm stereolithography

Scanning Speed 8-15 m/s

Controlling Software Union Tech Company™ RSCON

Data Preparation Software Polydevs

Operation System Windows 10

Input File Format .usp

Network Type and Protocol WiFi, Ethernet

Using MQTT, HTTP, TCP

Electrical Requirements 200-240 VAC, 50/60 Hz, Single phase

Rated Power 2.8 kVA

Systems Control Closed-loop

Temperature Range 72–79 °F (22–26 °C)

Maximum Change Rate 1 °C/hour

Relative Humidity < 40%

Machine Size (W x D x H) 1555 × 1445 × 2215 mm

Machine Weight 1050 kg

Initial Resin Weight 560 kg

Resin Vat Manual / Fixed

Processing and Finishing Post-Curing Unit (optional)

Warranty 12 Months

Regulatory Conformity CE / UKCA
