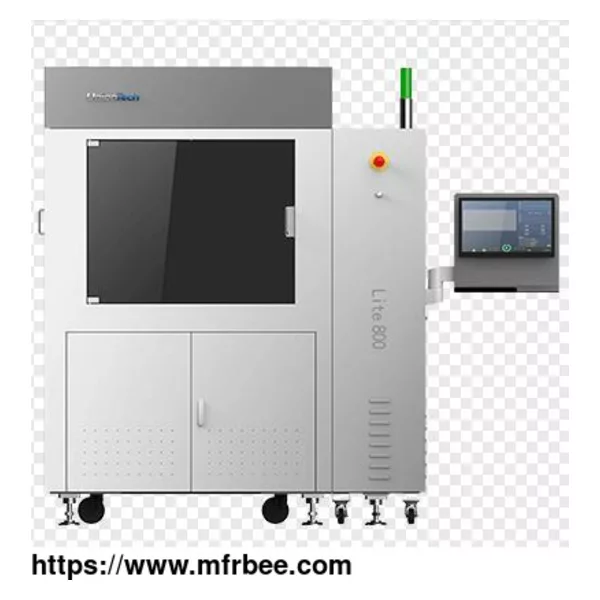

Lite800 Industrial SLA 3D Printer

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Industrial SLA 3D Printer for Sale
Lite800 is an affordable large-format professional SLA 3D printer, compatible with a variety of 3D printing materials for large-batch printing. High efficiency, high precision, high stability. Using variable spot and split design to provide a one-stop solution for large-format integral printing, small-format for large-batch printing.

Lite800 Technical Data
Build Volume 800 × 800 × 550 mm 31.5 × 31.5 × 21.7 in
Accuracy Dimension <100 mm: ±0.15 mm
Dimension ≥100 mm: ±0.15% x Dimension
Layer Thickness 0.07-0.25 mm
Laser 355 nm, solid-state frequency tripled
Nd: YVO₄
Beam Focus Dynamic & Variable
Beam Size 0.12-0.8 mm
Material Compatible with commercial available resins for 355 nm stereolithography
Scanning Speed 8-15 m/s
Controlling Software Union Tech Company™ RSCON
Data Preparation Software Polydevs
Operation System Windows 10
Input File Format .usp
Network Type and Protocol WiFi, Ethernet
Using MQTT, HTTP, TCP
Electrical Requirements 200-240 VAC, 50/60 Hz, Single phase
Rated Power 2.8 kVA
Systems Control Closed-loop
Temperature Range 72–79 °F (22–26 °C)
Maximum Change Rate 1 °C/hour
Relative Humidity < 40%
Machine Size (W x D x H) 1555 × 1445 × 2215 mm
Machine Weight 1050 kg
Initial Resin Weight 560 kg
Resin Vat Manual / Fixed
Processing and Finishing Post-Curing Unit (optional)
Warranty 12 Months
Regulatory Conformity CE / UKCA
