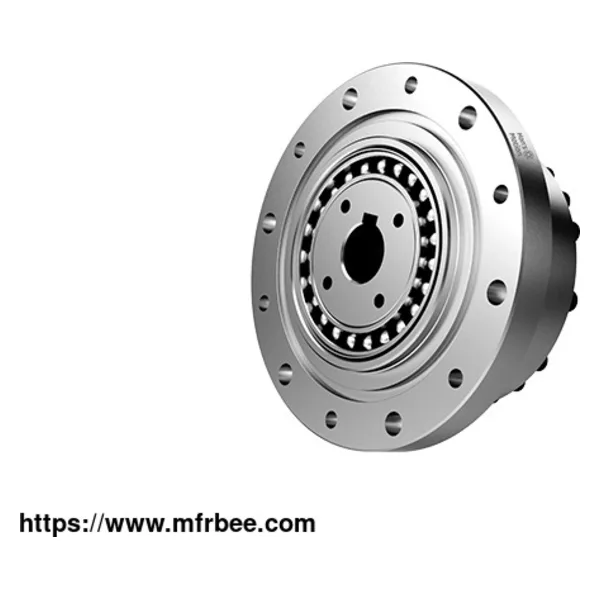

HMCG-Ⅱ-E Series Unit (Integral Cam) Harmonic Gearing
Product Quick Detail
- FOB Price
- USD $130.00 / Piece
- Place Of Origin
- Shenzhen
- Minimum Order
- 5000
- Packaging
- Carton Box
- Delivery
- 10-25 working days
Specifications
HMCG-II-E series flex spline is a cup-shaped standard structure, input shaft connects with the harmonic reduction gear box inner hole directly, fixed through a flat key connection. Generally, the
circular spline is fixed, and the flex spline is connected to the output end.
Features of HMCG-Ⅱ-E Series Unit (Integral Cam) Strain Wave Gearing
Peak Torque: 23Nm to 802Nm
Maximum input speed: 4000-8000 r/min
Zero Backlash
High Accuracy
High Torsional Stiffness
High Efficiency
Robust Cross Roller Output Bearing
Customized Lightweight solution is available
Competitive quality with the above advantages of strain wave gearing, inquiry Hansmotion to buy harmonic drive
Features of HMCG-Ⅱ-E Series Unit (Integral Cam) Strain Wave Gearing
PRODUCTS
HMCG Series Harmonic Drive Cup Type
HMCG-Ⅰ Series Component Harmonic Gearing
HMCG-Ⅱ Series Unit Harmonic Gearing
HMCG-Ⅱ-E Series Unit (Integral Cam) Harmonic Gearing
HMHG Series Harmonic Drive Hat Type
HMCD Series Harmonic Drive Cup Type
HMHD Series Harmonic Drive Hat Type
Parameters Of HMCG-Ⅱ-E Series Unit (Integral Cam) Harmonic Gearing
Model Reduction ratio Rated torque at input 2000r/min Permissible peak torque at start / stop Permissible max.value of ave.load torque Instantaneous permissible max. torque Permissible max. input
rotational speed Permissible ave. input rotational speed Backlash (arc sec) Transmission accuracy (arc sec)
Nm Nm Nm Nm r/min r/min W W
14 50 7 23 9 46 8000 3500 20 90
80 10 30 14 51 20 90
100 10 36 14 70 10 90
17 50 21 44 34 91 7000 3500 20 90
80 29 56 35 113 20 90
100 31 70 51 143 10 90
20 50 33 73 44 127 6000 3500 20 60
80 44 96 61 165 20 60
100 52 107 64 191 10 60
120 52 113 64 161 10 60
25 50 51 127 72 242 5500 3500 20 60
80 82 178 113 332 20 60
100 87 204 140 369 10 60
120 87 217 140 395 10 60
32 50 99 281 140 497 4500 3500 20 60
80 153 395 217 738 10 60
100 178 433 281 841 10 60
120 178 459 281 892 10 60
40 50 178 523 255 892 4000 3000 10 60
80 268 675 369 1270 10 60
100 345 738 484 1400 10 60
120 382 802 586 1530 10 60
As a harmonic drive company, we will do our best to meet all the needs of customers.
