Green Silicon Carbide

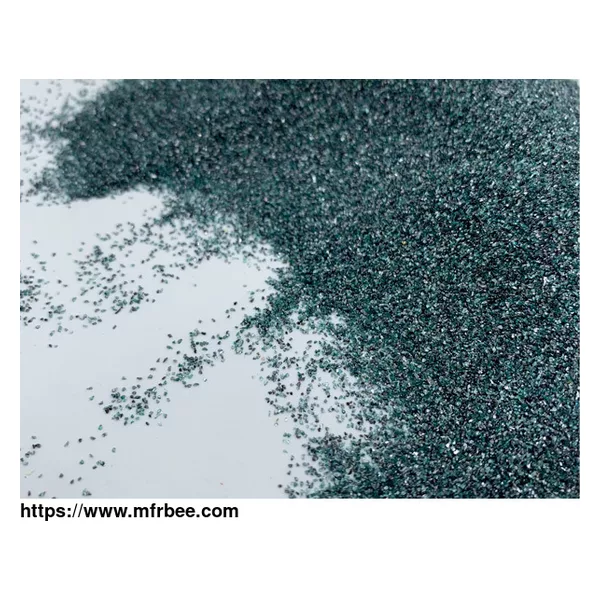

Green silicon carbide crystals have high purity and hardness. You can find the wide applications of green silicon carbide powder in machining hard alloy, metal and non-metallic materials. For instance, materials with hard and brittle characteristics like copper, brass, aluminum, magnesium, jewelry, optical glas can all be processed by green silicon carbide grit. It is also a ceramic material for ultra-micropower. As one of the professional green silicon carbide manufacturers in China, HAOYUN can provide you with quality green silicon carbide powder wholesale. As for the production process of our green silicon carbide powder is very similar to the production of black silicon carbide powder.

Green Silicon Carbide Specifications

Purpose Specification Chemical Composition (%) Magnetic Material Content(%)max

Abrasives Grade SiC min F.C max Fe2O3max

grain 12-80 99 0.20 0.2 0.0180

90-150 98.5 0.25 0.5 0.0150

180-220 97.5 0.25 0.7 0.0120

micro powder 240-4000 96 0.30 0.8 —

Refractory Grade Group Size 0-1mm

1-3mm

3-5mm

5-8mm 99 0.35 0.7 —

Fine Powder -180mesh

-200mesh

-240mesh

-320mesh 98 0.35 0.7 —

color green

Hardness(mohs) 9.15

Melting point(℃) 2250

Maximum service temperature(℃) 1900

Ture density(g/cm3) 3.9

Available Sizes GRIT JIS #16 #20 #24 #30 #36 #46 #54 #60 #70 #80 #90 #100 #120 #150 #180 #220

FEPA F16 F20 F22 F24 F30 F36 F40 F46 F54 F60 F70 F80 F90

F100 F120 F150 F180 F220

Powder JIS #240 #280 #320 #360 #400# #500 #600 #700 #800 #1000

#1200 #1500 #2000 #2500#3000 #4000 #6000

FEPA F230 F240 F280 F320 F360 F400 F500 F600 F800 F1000 F1200 F1500

Green Silicon Carbide Powder Applications

01

Green silicon carbide powder is suitable for grinding high-speed, high carbon steel

02

High-grade refractory materials

03

Abrasives tool

04

Grinding and polishing

05

Ceramics

06

LED

07

Sandblasting

08

Aviation

09

Wire-electrode cutting

10

Photovoltaic and solar energy

If you need any kinds of abrasive raw materials, please contact us, as one of the most professional abrasive material suppliers, Haoyun is willing to offer you high quality products.
