R10 Rugged Tablets

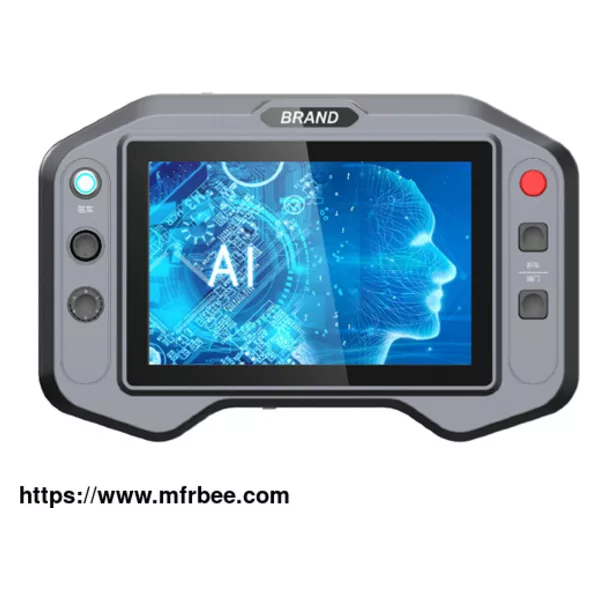

R10 industrial tablet computer is a 10.1-inch short-range remote control tablet for construction work vehicles. The industrial tablet pc has 3 analog buttons and multiple digital buttons. Through WIFI or other wireless technologies, this china rugged tablet pc can realize short-range control of vehicles to operate as required and improve efficiency. (in development. . .)

Highlights of R10 Rugged Tablets

R10 remote control rugged industrial tablet, you can control the vehicle remotely and accurately through the rugged mobile data terminal tablet

It is suitable for remote control operation of mining trucks, engineering operation vehicles, and logistics and warehousing vehicles

It can support customized high-precision operation and realize precise operation. For difficult operation environments, it can reduce the risk of manual operation and realize remote operation through remote control.

High-level protection IP67 to protect outdoor work protection, long battery life can effectively ensure outdoor work time during the tablet for industrial use

Specification of R10 Rugged Tablets

Appearance

IP rating IP65 Waterproof

Display 10.1", 1280*800， brightness>=500 CD/M2

Full-fit screen technology, multi-touch

Appearance

IP rating IP65 Waterproof

Display 10.1", 1280*800， brightness>=500 CD/M2

Full-fit screen technology, multi-touch

System

Processor 64-bit processor, quad-core Cortex A53, frequency 1.5GHZ

Memory 2GB (*up to 4GB)

Storage 16GB (*up to 256GB)

OS Android 10.0 (* or LINUX+QT)

Communication

WIFI 2.4G WiFi, IEEE802.11 b/g/n , support long-distance application

Bluetooth BT2.1+EDR/3.0/4.0 BLE

GNSS GPS+BD +GLONASS (*optional)

LTE LTE module: Quectel EC200 (*optional LTE modules to support operators in different countries)

LTE-FDD: B1/B3/B5/B8

LTE-TDD: B38/B39/B40/B41

GSM：900/1800MHz

Interfaces

Interfaces Powerbutton *1

USBC * 1 (for software debugging)

USB Host A *1

TF Card *1

Nano SIMCard *1

Environmental

Environmental IP Rating: IP65

Power: ISO7637-2 standard

Operating Temperature: -20°C ～+70°C

Relative Humidity: 10 to 90% at 40°C, non-condensing

Shock&Vibration: MIL-STD-810.
