Reefer Container Monitoring System
Product Quick Detail
- FOB Price
- USD $600.00 / Piece
- Place Of Origin
- Shenzhen
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15Days
Specifications
The "reefer container temperature monitoring system" of CIMC Intelligent Technology Co., Ltd. is used in reefer container yards and terminals. A "Reefer Container Monitoring System" host can
monitor 24 reefer containers, the monitoring plugs and protocols are automatically adapted, and it can support the industry's main reefer container brands. The cables and equipment are
waterproof and dustproof, which support applications in hard environment. The cable of the product does not have a locking mechanism, which supports the self-falling action of misoperation. The
product has the characteristics of automatic retractable cable, and the site environment is beautiful after the construction.
The "Reefer Container Monitoring System" successfully replaced the traditional mode of manual handing operations. Real-time monitoring of reefer containers and abnormal alarms are realized,
which effectively improves the intelligent monitoring level of reefer containers and improves the quality of cold chain logistics.
Product Description
Collecting Data In Real Time
Through the collection, transmission and monitoring of real-time data, to reduce manual handing operations
Abnormal Inspection Alarm
The whole process of automatic data collection/reporting/storage of refrigerated container, real-time automatic inspection of fault alarms about refrigerated containers
Data Visualization
Adopt 2D/3D data visualization management to realize the informatization of data management and precision of that
The Advantage of Product
Automatic Inspection And Warning
Check with data collectors, save labor costs and eliminate human error, respond quickly to discrepancies and warn of heat load events, reducing costly claims
Data Transmission - Multiple Methods Available
Communication between equipment and server: Ethernet, WIFI, 4G cellular network, port designated private network, etc.
Domestic Products And Data Security
The product has a full set of independent intellectual property rights, patent certificates, soft works, etc.; data security: support the SM2/SM3/SM4/SM9 encryption algorithm issued by the
China's State Cryptography Administration'
Equipment Use - Simple and Practical
The equipment is simple and efficient to use. When the reefer container crew plugs the power supply into the reefer container, they can insert the plug of the data acquisition line by the way.
Visual Management
Visual management makes the production management process more intuitive, makes information communication more effective, and visualizes the information inside the port and yard, so as to achieve
transparent and accurate management
Equipment Maintenance - Simple and Convenient
Troubleshoot the indicator lights of the data collector, and check the bolt loosening of the equipment installation

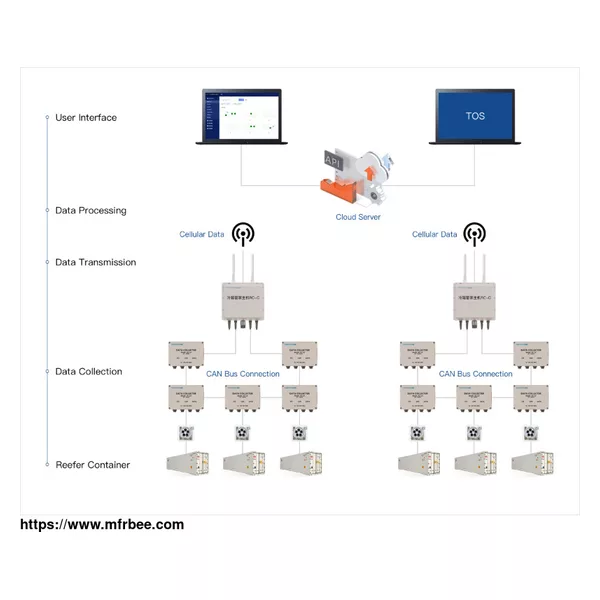

Monitoring Hardware Products For Reefer Containers
The "Reefer Container Monitoring System" Host: RC-C
It is installed on the shelf of reefer container, collects the real-time data from data collector of each reefer container, and transmits upload data to the system server.
The "Reefer Container Monitoring System"Slave: RC-CA
Installed on the shelf of reefer containers, collecting real-time data (such as temperature, supply air and return air) of major brands of reefer containers , and transmit them to the "Reefer
Container Monitoring System" .
The platform of the "Reefer Container Monitoring System" and server of that
It is installed in the computer room of the user information management center (IT department), and the deployed server is delivered to the customer for daily maintenance management.
eal-time Monitoring System For Reefer Container
Parameter Specification
Product Name The monitoring terminal of the "Reefer Container Monitoring System" : the host of the CAN version The monitoring terminal of the "Reefer Container Monitoring System" : the slave
of the CAN version
Product Type RC-C RC-CA
Size 300mm150mm95mm 100mm*68mm*50mm
Material 304 Stainless Steel ABS Material
Weight -- --
Power Supply Equipment DC12~24V DC12~24V
Method of Data Transmission Host & Server: Ethernet, Optional: WIFI/Cellular Network Master-slave: CAN Bus
Monitor The Number Of Reefer Containers ≤32 Channels One-To-One
Communication Interface Of Reefer Containers Communication Between Slave And Reefer Container: RS232 --
Data Reporting Frequency >40S' >40S'
Protection Class IP67 IP67
Operating Temperature -40°C~+85°C -40°C~+85°C
Operating Humidity 5%RH~95%RH 5%RH~95%RH
Prompt Status None 4 Channel LED
SIM Card Interface 1 --
Processor ARM7 --
Operating System FreeRTOS --
Power Rating ≤10W --
Wireless Interface SMA --
Localstorage Capability For Data It can store ≥3000 data of reefer containers, at least 60 reefer containers can work together for 24 hours, and one piece of data can be stored half an hour. --
For or more about reefer guard and reefer container yard, please feel free to contact us!
For more information about reefer container tracking, please feel free to contact us!
