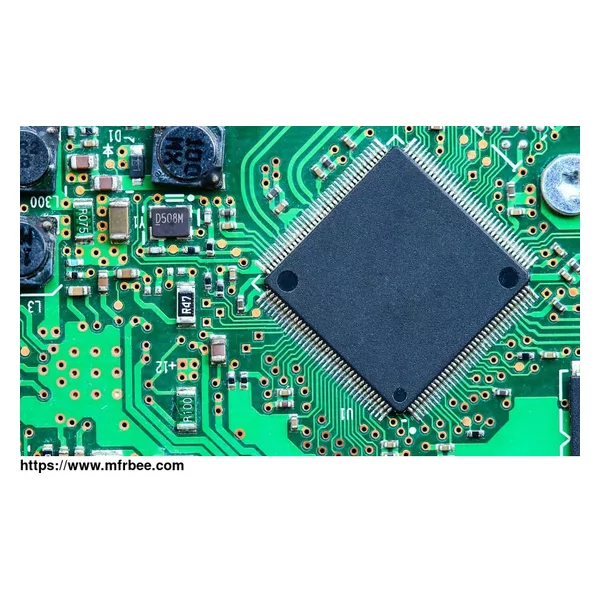

Turn-key PCB Assembly
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
As GreensTone CEO said, GreensTone has over 10 years of experience in the China turn key pcb assembly industry. Our core values are centered around customer service, engineering, manufacturing, and
product solutions. In the beginning, we gained a stellar reputation through China turnkey pcb assembly services and our customers pushed us to help them find solutions for PCB Fabrication,
Components, Interconnect, Cables, Packaging Systems, and Mechanical parts in plastic or metal. Our expansion into these areas has allowed us to provide our customers with a wide range of
engineering and manufacturing capabilities. Our core business is PCB assembly!
China Turnkey PCB Assembly Quality Control Process
Assembly manual instruction
The PCBA engineer of prototype pcb assembly supplier GreensTone make the assembly manual instruction to norm the manufacturing process in advance, guide the production, and improve the quality from
the process technology
IQC Incoming Quality Control
Check all the components values, pads size, brands, manufacturing date and code
SPI Solder Paste Inspection
Solder paste inspection can check the solder paste is sufficient and uniform to prevent assembly quality problems in advance caused by poor solder paste soldering
Online AOI Inspection
The AOI can check the short circuit, offset, wrong solder, reverse solder, false solder, empty solder, incomplete solder, etc. It also can check excessive solder, less solder, continuous solder and
solder joints.
First sample confirm
Check the first China turnkey pcb electronics sample with Gerber, BOM and coordinate files, test it's function with the testing program. Only sample confirmed by PCBA engineer, it can go for mass
production.
Off-line AOI inspection
Check the soldered surface mount assembly for errors, omissions, and false connections.
X-Ray welding inspection
Inspect the solder joints of invisible components like BGA.
QC manual inspection
The assembled board is visually inspected to ensure 100 % ok.
Specification of China Turnkey PCB Electronics Assembly
Item name China Turn key PCB Assembly Capability
PCB Type Rigid PCB
PCB Shape Rectangular, Circular and any Odd Shapes
PCB Dimension Min Board Size: 50mm x 100mm (Boards smaller than this size need to be panelized)
Max Board Size: 250mm x 500mm
Types of solder leaded and lead-free (RoHS Compliant) assembly
Components Size Passive Component: components as small as 01005, 0201,0402.
BGA: handle BGA of 0.25mm pitch with X-ray testing.
Fine Pitch to 0.25mm
UBGA, QFN, POP, leadless chips, connectors and terminals.
Components package in Reels, Cut Tape, Tube & Tray, Loose Parts and Bulk.
Components Source Turn-key/partial turn-key
Stencils laser cut stainless steel stencils
Quantities 1-50000pcs
If you are looking for a reliable electronic assembly factory, don't hesitate to contact us!
