Flat Welded Wedge Wire Panels
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

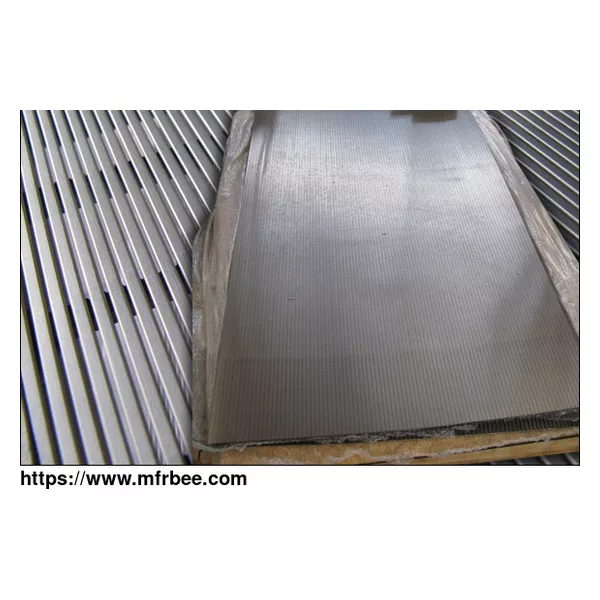

FLAT SCREEN PANEL
Material: SUS304
Wedge wire Width:0.50mm.
Wedge wire Height:1.00mm.
Relief Angle:11degree
Support rods:1.3mm widht x 3.1 mm height @9mm. space between rod centers. (the size could be bigger but the spacing should be no larger than 9 mm.)
Frame: None
Size:850 (Slot direction) x 1400 mm.
Slot Opening:40Microns
90 Microns opening screen made with #30 wire (0.76 x 1.5 mm.), while other specs are the same.
Material: SUS304
Wedge wire Width:0.50mm.
Wedge wire Height:1.00mm.
Relief Angle:11degree
Support rods:1.3mm widht x 3.1 mm height @9mm. space between rod centers. (the size could be bigger but the spacing should be no larger than 9 mm.)
Frame: None
Size:850 (Slot direction) x 1400 mm.
Slot Opening:40Microns
90 Microns opening screen made with #30 wire (0.76 x 1.5 mm.), while other specs are the same.
- Country: China (Mainland)
- Business Type: Manufacturer,Trading Company
- Market:Africa,Americas,Emerging Markets,Europe,European Union,Middle East,Oceania
- Founded Year:2012
- Address:105 New-China Street, Xianghe District, Dezhou, Shandong, China
- Contact:guo wei
