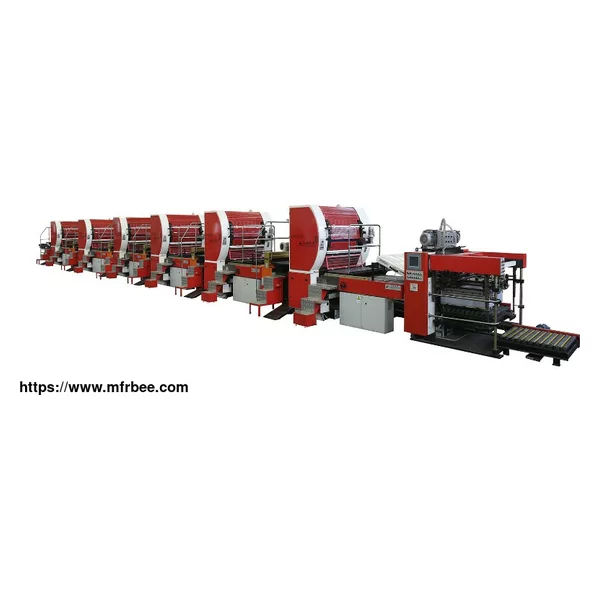

Intelligent RYYT 453 Series Metal Printing Machine

China's first intelligent metal colour printing machine comes from RYYT 453 series. Especially the upgraded 453 series achieve full automation, the series of metal printing press is intelligence, digital, and information, provide users with high efficiency, high performance, low cost of automatic metal printing production line. RYYT 453 series include 1-colour, 2-color, 3-colour, 4 color offset printing machine and as one of the metal decorating press manufacturers we sell 1-color, 2 color offset printing machine, 3-colour, 4-colour, multi-color machines at a suitable price.

RYYT 453 Series Color Printing Press Specifications

CONFIGURATIONS RYYT2453W/2-COLOR RYYT4453/4-COLOR RYYT6453/6-COLOR

Maximum sheet size 1145×950mm 1145×950mm 1145×950mm

Minimum sheet size standard 712×510mm 712×510mm 712×510mm

Sheet thickness standard 0.15-0.4mm 0.15-0.4mm 0.15-0.4mm

Maximum printing area 1135×945mm 1135×945mm 1135×945mm

Size of printing plate 1160×1040×0.3mm 1160×1040×0.3mm 1160×1040×0.3mm

Size of pre-bar blanket 1175×1135×1.9mm 1175×1135×1.9mm 1175×1135×1.9mm

Gripper margin 3-5mm 3-5mm 3-5mm

Maximum mechanical speed 7000 sheets/hr

Maximum printing speed depending upon printing shop conditions and ingoing material quality

Height of infeed table 916mm 916mm 916mm

Maximum weight of feeder pile 2.0 (ton) 2.0 (ton) 2.0 (ton)

Power of main motor 17(kw/unit)x2 17(kw/unit)x4 17(kw/unit)x6

Capacity of air pump 80+100(m³/hr) 80+100(m³/hr) 80+100(m³/hr)

Dimension of machine(LxWxH) Length without inspection table 10750x3700x2460mm 19050x3700x2460mm 26914x3700x2460mm

Total connected load of machine without dryers 56kw 104kw 148kw

Running pressing of air cylinder 0.6-0.8Mpa

Compressed air ≥140m³/h

CONFIGURATIONS New generation RYYT 4453/4-COLOR

Maximum mechanical speed 6500 sheets/hr Depending on production condition

K Value yellow (Y) ≥ 30%

magenta (M) ≥ 34%

cyan (C) ≥ 38%

black (BK) ≥ 45%

If you want to know more about multi color offset machine price, please contact us.
