Robot Laser Welding Machine
Product Quick Detail
- FOB Price
- USD $29,500.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Product Description

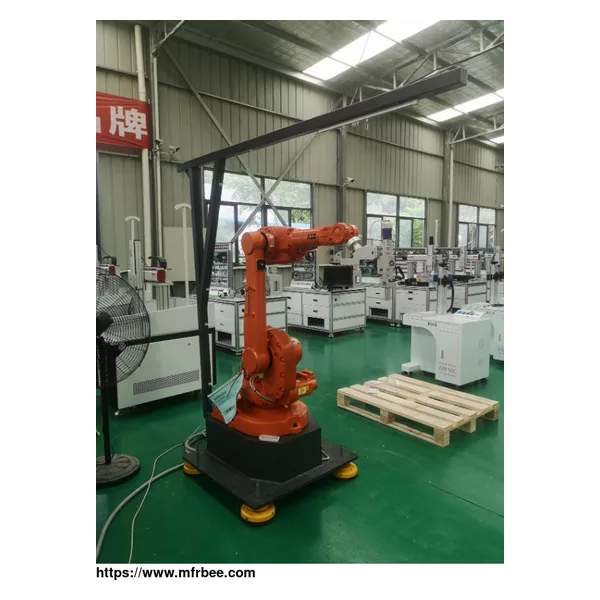

Automatic industrial robot arm laser welding system is a automation system which equip a robot arm to hold laser welding head to 3D welding.
Especially suitable
for welding of various components of the laser precision. Production efficiency is increased 8 times comparing with other normal laser spot welding systems. The aircraft from the YAG solid-state
laser, laser power, optical scanning system, flat-field focusing system, fiber-coupled transmission systems, computers and programmable controllers, cooling system, the laser pointer system, the
operation and three-axis precision CNC cabinet table and so on.
Technical Parameters
| Model | TXT-HJ-RB1000/1500/2000 |
| Automation | Robot system |
| Laser type | Fiber laser |
| Laser wavelength | 1064nm |
| Laser power | 1000W/1500W/2000W (Option) |
| Pulse width | <20ms |
| Pulse frequency | <100Hz |
| Spot welding speed | <15 spots/s |
| Size of light spot | 0.2-3.0mm |
| Adjusting range of light spot | 0.1-0.3mm |
| Maximum positioning speed | <7000mm/s |
| Resolution | 0.001mm |
| Repeating precision | 0.002mm |
| Cooling | Water cooling |
| Number of Axis | 6 axis |
| Working radius of Arm | 1.4 meter |
| Power Consumption | 12KW |
