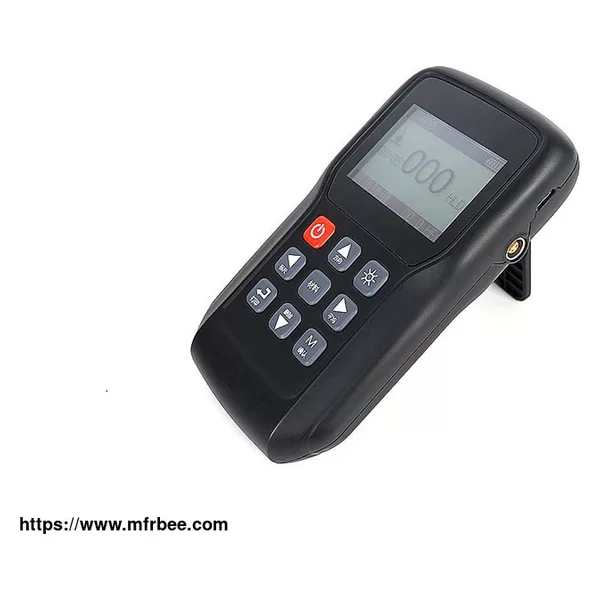

EHP110 Rebound Leeb Hardness Tester

The NEW Leeb Hardness Tester is a very handy portable, but powerful and versatile hardness tester for different kind of metallic materials including steel and cast steel, cold work tool steel, stainless steel, grey cast iron, nodular cast iron, cast aluminum alloys, brass (copper-zinc alloys), Bronze(copper-aluminum alloys/copper-tin alloys) and wrought copper alloys with high accuracy, suitable for use under tough working conditions.

This type of digital hardness testing machine can be used at any angle, even upside down. The digital rebound hardness tester can be used on rapid testing in a large range and multi-measuring areas for the large-scale workpieces.

EHP110 Rebound Leeb Hardness Tester Feature

Large screen LCD, showing all functions and parameters. With background light.

Seven optional impact devices are available for special application. Automatically identify the type of impact devices.

Test at any angle, even upside down.

Direct display of hardness scales HRC, HRA, HRB, HB, HV, HSD, MPa

Large memory could store 100 groups of information including single measured value, mean value, impact direction, impact times, material and hardness scale etc.

Conforms to the Standard GB/T17394, GB/T1172,ASTM A956 & DIN 50156

EHP110 Rebound Hardness Tester Specification

Accuracy ± 6 HL

Scales HRC, HRA,HRB, HB, HV, HSD, MPa

Display 160 * 128 dot matrix LCD with backlight

Testing direction All direction

Optional Impact Device D,DC,DL,C,D+15,G

Data Memory 1000 readings

Operating voltage 4.5V (3 AAA batteries)

Operating environment Temperature ：-10～+40℃

Humidity: 20%～85%

Storage environment Temperature ：-30～+80℃

Humidity:5%～95%

Dimensions 154mm*82mm*26mm

Weight Approx.230g

Accessories Display Unit, Impact Device D, Test Block, Mini-printer, Charger, Little Support Ring, Cleaning Brush

Optional Mini printer

Certificate CE

For more details of leeb hardness tester principle, contact us.
