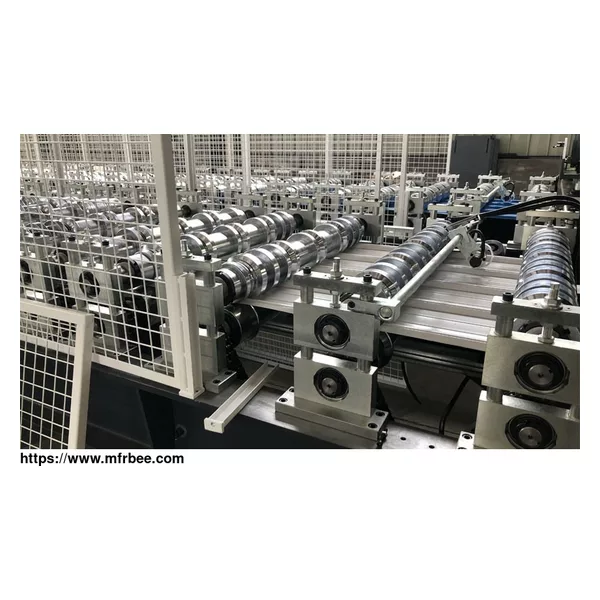

AG PANEL ROLL FORMER

AG panel roll former is a machine used in the manufacturing process of metal roofing panels. The machine is used to shape flat metal sheets into a corrugated or ribbed pattern that is commonly used in agricultural and industrial settings.

Our AG panel roll forming machine series is used to make high-quality AG panels. As a professional roof and wall panel roll forming machine manufacturer, Hangzhou Roll Forming Technology Co., Ltd. provides high-quality AG panel roll former for sale, including car panel roll forming machine, at reasonable prices. Please feel free to contact us for more information about our car panel roll forming machine.

Features and Advantages of AG Panel Roll Former

AG panel roll former, specially designed for forming roofing corrugated sheet, siding panel, floor decking, under mass-production.

Production speed: 20/30/40/50/60 m/min optional.

Working with a non-stop flying cut and full automatically stacking system, Max speed of the line can reach 60 m/min.

Cassette-type platform change rolling machine base for multi-profile purposes is available for choice.

Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

Most of the hot & popular profiles models, we have a variety of ready ag panel roll forming machines in stock for prompt delivery.

Suitable Raw Material for AG Panel Roll Former

Material type: Color coated Steel, Galvanized Steel, Aluminum sheet, stainless steel

Thickness: 0.3-0.7(mm)

Yield Strength: 230-300/350/550-675(MPa) optional

Width: 1038,1055,1092 (mm)

Production Line Components and Parameters of AG Panel Roll Former

1. Decoiler 5t/8t/10t//15t Motor/hydraulic motor/passive (optional)

2. Filming covering device optional

3. Front shear optional

4. Lubricating device no need

5. Roll forming system 20/30/40/50/60 m/min (optional)

6. Safety cover optional

7. Post cutting Motor/hydraulic (optional)

8. Output System Manual supporter/ Automatic Stacker (optional)

Stackmaster (Output direction) Lateral/Longitudinal (optional)

9. Hydraulic system Power supply for decoiler /post-cutting system

10. Electric control system MITSUBISH/ SIEMENSE/AMS (optional or as requested )

Working Flow of AG Panel Roll Former

The working flow of our AG panel roll forming machines is as follows: Coil Charging Car (optional) - Decoiler (passive/auto) - Front Shear(optional) - Feeding and Guiding Table - Filming Covering (optional) - Roll Forming System - Post-Cutting to length (Hydraulic/Motor) - Output Manual Supporter/Stackmaster(optional)

Application of Roof Panel AG Machine

The Advantage Panel is a durable, weather-resistant metal roofing option for both residential and agricultural projects. These sturdy panels can provide excellent protection against harsh weather conditions and will increase the lifespan of your roof. Plus, AG-Panels are not only cost-effective & provide high-performance standards but they also lower the need for maintenance on your roof. Advantage panels are perfect for retro-fitting over existing composition shingles. These sheets of lower-profile metal roofing save time, labor, and disposal costs, which means a lower total project cost. The design with bold ribs, making it an exceptionally attractive and high-performance roofing and cladding.

Specification of AG Panel Roll Former

Machine Condition Fully New, A Grade quality

Panel Shape As profile drawing and customer’s requirements

Operator needed 1-2 persons

Power Supply 220V/380V/415V/460V, 50/60Hz, 3P (as requests)

Equipment Weight About 15t

Dimension (L*W*H) about 25*3*2m

LOADING SIZE Normally need 1x 40' (+ 1x 20GP) container.

Equipment Color Normally Blue/White, or as requests;

Place of Origin Zhejiang, China (Mainland)

Packing Standard and careful export packing
