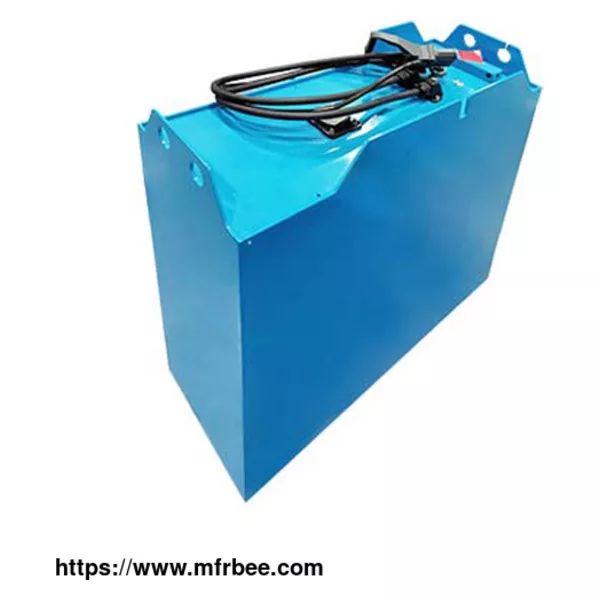

24V Lithium-ion Forklift Battery

Place Of Origin
China
Minimum Order
10
Packaging
Carton by air,plywood cases by sea
Delivery
15 Days
Smart FLT Series: Forklift Lithium Battery 25.6V206Ah

Remote&Onsite Product Support

GPS&GPRS function

Charger communication commissioning

Charge and discharge connector adaption

Interactive integrated Display with voice, buzz and switch button

Customization service against different brand of forklifts

IP 54 structure design

Flexible supply in additional weight

Vehicle CAN communication support

24V Forklift Battery Technical Data
No. Items Parameter Note
25.6V206A
206Ah1P8S
1 Nominal voltage(V) 25.6
2 Operating voltage(V) min 20
3 max 29.2
4 Group mode 206Ah1P8S
5 Nominal energy(KWh) 5.27 25±2℃
6 Weight(Kg) ≈80kg no additional weight
7 Nominal capacity(Ah) 206 25±2℃
8 Maximum continuous charge current(A) 100 25±2℃
9 Maximum continuous discharge current(A) 160 25±2℃
10 Maximum pulse discharge current(≤5s)(A) 300 25±2℃
11 Shipping consistency(mv) 30 The voltage difference between cells <30mV
12 Charging port REMA160A(female) customizable
13 Discharging port REMA160A(female) customizable
14 GPRS communication 4G optional
15 SOC operating range(%) 20~100
16 Insulation requirements(MΩ) ≥20 500V DC, High voltage output to battery shell, at the normal temperature and humidity
17 cooling method Natural cooling
18 Shipping capacity ≈30% SOC is consistency in the same batch
19 Dimension L (mm) 550 For Crown WP3035-45
Outer box dimensions can be customizable according to the brand and model of forklifts
Dimension W (mm) 195
Dimension H (mm) 520
20 Charger Optional

24V Forklift Battery Advantages

Cost-effectiveness: 24-volt forklift batteries tend to be more affordable than higher-voltage options, such as 36V forklift batteries or 48-volt forklift batteries. This can be particularly beneficial for small businesses or those with budget constraints.

Compact Size: A 24-volt forklift battery is usually smaller and lighter than higher-voltage batteries. This can be advantageous for applications where space is limited or when maneuvering in tight spaces is required.

Improved Maneuverability: With a lighter battery, a forklift lithium battery equipped with a 24-volt battery can offer enhanced maneuverability. This can be particularly beneficial in warehouses or other confined areas where precise movements are necessary.

Easy Charging Infrastructure: Charging infrastructure for 24-volt batteries is generally more readily available and less expensive than for higher-voltage batteries. This makes it easier to find suitable charging stations and reduces the overall investment required for charging equipment.

Reduced Maintenance Costs: Lower-voltage systems, such as 24-volt batteries, often have fewer components, which can translate to lower maintenance costs. Additionally, the lower voltage reduces the stress on electrical components, potentially extending their lifespan.

Simplicity: A 24-volt forklift system is generally simpler and easier to operate and maintain than a higher-voltage system. This can be advantageous for businesses with less specialized technical expertise or those looking for straightforward equipment.

Tags:

Bulk Lithium Batteries
Forklift Lithium Ion Battery

Now the price of 24 volt forklift battery for sale is reasonable, if you have needs, please contact us.

As a lithium ion battery factory, we will do our best to meet all the needs of customers.
