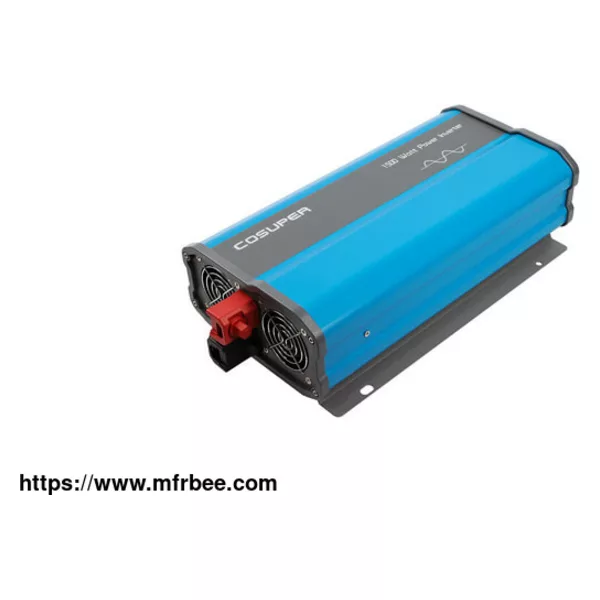

1500W PURE SINE WAVE INVERTER

The inverter pure sine wave 1500w converts battery power(12V/24V/48V) to AC power(110V/120V/230V/240V) so you can power up most appliances when the electrical grid is not accessible. It's a stable power source with 1500W continuous power and 3000W surge power with low harmonic distortion and is capable of powering any devices that do not exceed 1500 Watts in total continuous power draw (3000W surge capacity). The 1500 watt DC to AC power inverter can be used in cars, vessels, during camping and in power failure emergencies. This 1500W pure sine wave power inverter is a medium sized unit which is great for electronics such as toaster, dishwasher, refrigerator, electric kettle, mocrowave and the list goes on.

FEATURES OF 1500W PURE SINE WAVE INVERTER

This DC to AC inverter for sale is regulated by UL458 and CSA C22.2, CE under EN55022:2006+A1:2007 standards

Enhanced heat dissipation design can avoids the power drop caused by high temperature and extend the life of inverters

External LCD remote control panel allows the control from a remote

High surge capability provides the necessary current to start electrical loads such as power tools, microwave ovens, car refrigerator and more.

Soft start low interference tech and automatic temperature control cooling fan

2 years warranty

TECHNICAL SPECIFICATIONS OF 1500W PURE SINE WAVE INVERTER

Power Input&Output SCH1500

Output Power 1500W

Surge Power 3000W

Idle Power 9W

DC Input Voltage 12/24/48VDC

DC Input Regulation 10.5-15VDC(*2 for 24vdc, *4 for 48vdc)

Output Voltage 100/110/120VAC +/-3%;220/230/240VAC+/-5%

Output Frequency 50/60HZ+/-0.05%

Output Waveform TruesinewaveTHD<3%

Power Factor 0.8-1

Efficiency 110V 93%

220V 93%

Control& Signal Indicates

Fault Indication RedLEDlightandbuzzalarm

Work Indication GreenLEDlight

Remote Control CR10

Battery Type AGM, Seal lead acid, Gel, Open lead acid, LiFe04

Protection Overload,Over/under input voltage

Over temperature, Short circuit

Safety AS/NZS4763:2011, UL458, LVD(EN60950)

General Parameter

Operating Temp -5-40℃

Working Humidity 20-90%RH

Storage Temp -30-70 ℃

Cooling Automatictemp-controlfans

Weight(kg) 3.5

Size(mm) 170*357*96

If you are looking for a reliable inverter factory, don't hesitate to contact us!
