1500W PURE SINE WAVE INVERTER CHARGER
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

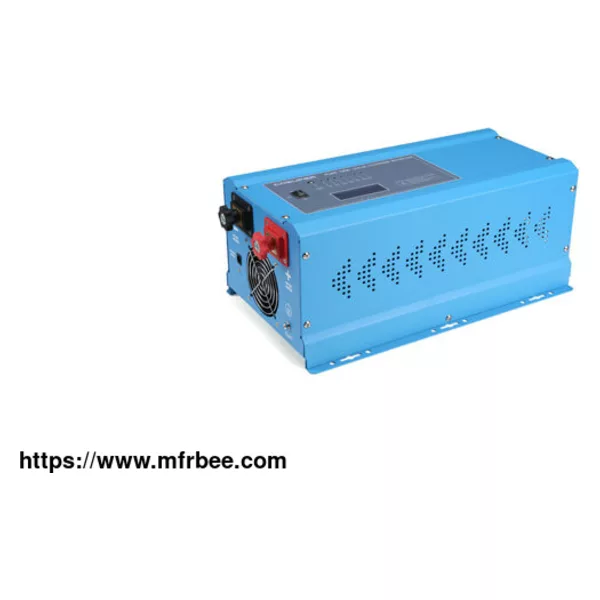

This Cosuper LPT1500 inverter charger combination is designed for off-grid and backup power applications, providing a pure sine wave inverter, battery charger, automatic transfer switch in one
unit.
The 1500 watt pure sine wave inverter charger can be connected to shore power or generators to form a power system for the most demanding applications. With 1500W continuous output, it’s able to
convert the vehicle's 12V/24V DC power into AC power, which is the same as the power supply in your home, compatible with most mobile household power equipment on the go. The 1500W pure sine wave
inverter charger is ideal for use in cars, RVs, trucks, boats and campervans.
FEATURES OF 1500W PURE SINE WAVE INVERTER CHARGER
Multi-functions: Battery inverter, AC charger, AC bypass and UPS
Three stage battery charging mode, compatible with Gel, AGM, Flooded, Lithium batteries
High efficiency gets the most out of your reserved energy
Built-in auto transfer switch between DC power and AC power
7 LED display show the working mode of the device
Reprogrammable Interactive Display Control System CR10 for easy data reading
Bypass mode increase the efficiency and make the quality of the AC output the same as AC input
Power Saving Mode helps preserve battery capacity over long period of no operation
Electronic protection against Over/under voltage, overload, over-current, overheating, short circuit
This kind of solar power inverter charger has 2 years warranty
TECHNICAL SPECIFICATIONS OF 1500W PURE SINE WAVE INVERTER CHARGER
Models LPT1500
Output Power 1500W
Surge Power 4500W
Output Voltage 100/110/120VAC±5%, 220/230/240VAC±3%
Oput Frequency 50/60Hz±0.5%
Output Waveform True Sine Wave(THD<5%)
Power Factor 0.1~1
DC Input Voltage 12/24/48VDC
Voltage Range 10.0~16.0/20.0~31.0/42.0~62.0VDC
Power Saving Mode <15W
Efficiency 110VAC 84%; 230VAC 84%
AC Charger
AC Input Voltage 90~135VAC/190~245VAC
DC Output Voltage Fast(14.0~15.1V), Float(13.3V~13.8V), (*2 for 24VDC, *4 for 48VDC)
Over Charge Protection 15.7VDC(*2 for 24VDC, *4 for 48VDC)
Charge Current 110VAC 50A/25A/15A; 220VAC 45A/35A/20A
AC Bypass
Transfer Time <8 ms
Input Volt. Waveform Utility AC or Generator (Sine Wave)
Max Bypass Current 20A
Control&Signal
LED Indicator Working Mode
LCD Screen AC Input, AC Output, DC Input, Output Frequency, Load Percentage, Working Mode, Fault Indicator
Remote Control(optional) CR10~11
Battery Type Manual Optional
Safety&EMC
Safety UL458, LVD (EN60950)
EMC FCC Part15 Class A, CE (EN55022:2006+A1:2007)
Environment
Operating Temp -20~50℃
Working Humidity 20~90%RH
Storage Temp -30~70℃
Other Information
Cooling Automatically controlled cooling fan
Weight(kg) 15
Size(mm) 425*255*185
Application Vehicle, Yacht, Solar power systems, Portable equipment, Power tools, Home and office appliances
If you are looking for a reliable inverter factory, don't hesitate to contact us!
