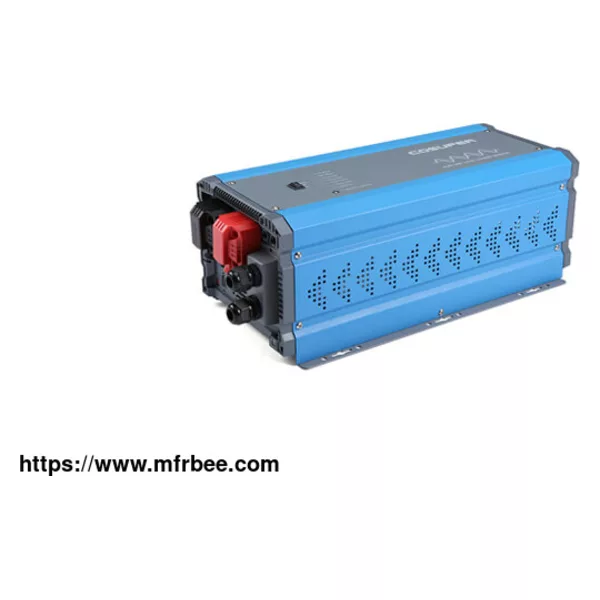

2000W INVERTER CHARGER WITH TRANSFER SWITCH

The Cosuper 2000 watt pure sine inverter charger with transfer switch can be used for multiple applications when going off-grid, such as RVs, Caravans, Camping trips and more. A power inverter is an electrical device that converts the DC power stored in a battery into standard AC power for user's power needs. This 2000 watt inverter charger with transfer switch can also charge and maintain a battery when connected to utility power and is compatible with Lithium/Gel/AGM/Wet batteries. With a low transfer time, power remains uninterrupted when switching from AC to DC power. This creates clean and silent power without having to worry about losing access to connected devices. The 2000 watt inverter charger with transfer switch is a perfect back-up power source!

FEATURES OF 2000W INVERTER CHARGER WITH TRANSFER SWITCH

2000W pure sine wave

It is a type of pure sine inverter works with the optional source priority

Gen starter gives boost signal to start backup generator for emergency

Approved by ETL under UL458 and CSA C22.2, CE under EN55022:2006+A1:2007 standards

TECHNICAL SPECIFICATIONS OF 2000W INVERTER CHARGER WITH TRANSFER SWITCH

Models CPT2000

Output Power 2000W

Surge Power 6000W

Output Voltage 100/110/120VAC±5%;220/230/240VAC±3%;120/240VAC Split phase

Output Frequency 50/60Hz±0.5%

Idle Consumption(Saving mode/working mode) 5W/12W

Output Waveform Pure sine wave(THD<5%)

AC Input Range 90~135VAC/165~265VAC

AC Input Frequency 50/60Hz±0.5%

DC Input Voltage 12/24/48VDC

DC Voltage Range 10.0-16.0 / 20.0-31.0 / 42.0-62.0 VDC

Efficiency 110VAC | 86%

230VAC | 88%

AC Charger/Bypass

DC Output Voltage Bulk(13.0-14.9V); Absorption(14.9-15.1V);

Float charge(13.3-13.8V)(24V*2,48V*4)

Overcharge Protection 15.7VDC(24V*2, 48V*4)

Charge Current 110VAC | 50A/25A/20A

230VAC | 50A/25A/20A

Transfer Time ≤10ms

Input Waveform Pure sine wave(Utility power or generator)

MAX Bypass Current 20A

Control & Signal

LED Indicator 7-led for working mode

Remote Control(optional) CR10;PTM-12

Dip Switch Charge current; Output frequency; AC output voltage; DC/AC priority

Network Function Stand-alone, orTCP/IP optional

Battery Type Lithium, Gel, AGM, Wet or customized

Dry Contact Terminal By relay

General Specification

Safety UL458, LVD(EN60950)

EMC FCC part 15 ClassA, CE(EN55022:2006+A1:2007)

Operating / Storage Temp -20-50℃/-30-70℃

Working Humidity -20-90%RH

Weight(Kg/Ib) 17/37

Dimension(mm/inch) 525*250*185/ 21*10*7

Application Mobile vehicle, Yacht, Solarpowersystems, Portable equipment, Power tools, Home and Office appliances
