TJH-2A Parallel Beam Load Cell
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

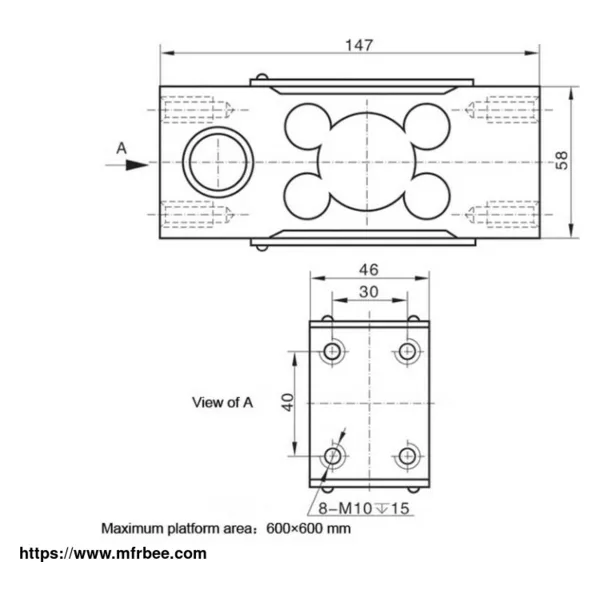

TJH-2A Platform Load Cell
The product is adjusted at the four corners to ensure that it outputs consistently at all points in the specified load plane. Suitable for packaging scales, platform scales, electronic belt scales,
batching scales, etc.
Specifications of TJH-2A Platform Scale Load Cell
Technical Parameter
Rated Load 1~10 kN
Comprehensive Precision 0.02~0.05% FS
Sensitivity 2.0 mV/V
Creep ±0.02% FS/30min
Zero Output ±1% FS
Temperature Effect On Zero ±0.02% FS/10℃
Temperature Effect On Output ±0.02% FS/10℃
Operating Temperature Range -20~+65 ℃
Input Resistance 380±10 Ω
Output Resistance 350± 3 Ω
Insulation Resistance ＞5000 MΩ
Safe Load Limit 150% FS
Bridge Voltage Reference 10V DC
Material Alloy Steel or Stainless Steel
Load Cell Mode Of Connection Input+: Red
Input-: Black
Output+: Green
Output-: White
As one of load cell suppliers, we will do our best to meet all the needs of customers.
