DETACHABLE GOOSENECK TRAILER

Detached gooseneck trailer also called removable gooseneck trailer refers to a heavy-duty low bed semi-trailer with mechanical or automatic disassembly of the gooseneck of the trailer and the loading platform. The main purpose of the gooseneck detach trailer includes the ability to climb the earth-moving machine from the front end of the trailer to the loading platform of the trailer.

WHY CHOOSE A DETACHABLE NECK GOOSENECK TRAILER?

A detachable neck gooseneck trailer is used for transporting heavy loads and machinery. When using an ordinary semi-low loader trailer instead of detachable gooseneck lowboy trailers, heavy goods are loaded from the mechanical ramp at the rear. However, when a detached gooseneck trailer is used, heavy machines can be loaded from the front.

Given the above removable gooseneck characteristics, the removable detach gooseneck trailer can effectively provide the convenience of loading machines from the front.

REMOVABLE GOOSENECK TRAILER DIMENSIONS

Package: 1

MOQ: 1 unit

Shipping Method: Bulk or RORO vessel

Validity: 40 days

Type of detachable gooseneck low bed with dolly

General information

Dimensions (L x W x H): 22,000*3,000*1,780

Payload: 80 ton

Deadweight: 22,000

Suspension: argonaut suspension

Subframe

Drums: Air drums in the brake system;

Hubs: Cast steel 10 studs and oil seals;

Tires: 8.25R216 size, no. of tires + 1 spares depending on axles types;

Axles: 20 tons type, YUEK;

Axle number: 12;

Brakes: dual-line brake system, non-asbestos;

ABS system: None;

Valve: WABCO emergency relay valve

Brake chambers: 30/30 chambers and air-actuated

Springs: 2010/10/10

Underframe

Main beam: I shape, 500mm height and mild alloy Q460;

Tensile strength: 46kg/mm2

Automatic submerged arc welding: Top flange thickness: 3mm

Bottom flange thickness:3mm

Middle flange thickness: 3mm

Crossbeam: U shape and mild alloy Q345b

Tensile strength: 34.5kg/2

Kingpin: 3.5-inch welded-type jots

Landing gear: JOST D200

MUD flaps: None

Appendix: one toolbox

Hydraulics: INTEVA

Other Information

The effective deck height of the lowered platform to ground: 800mm

Expose tire deck: 32

Tire size/ tire type: 8.25R 15 double coin

The thickness of chassis beam: 30mm

Mean beam date: As upon (Automatic submerged arc welding)

Guaranty and warranty: One year

After-sales parts support: Yes

How to claim: Commissioning on site for first after-sales service

Spare parts support: Yes

Spare parts manual: Yes

Spare parts cost and list in advance: Yes

English manuals: Yes

Options :

- Engine – Chinese, type, brand, specification/JAC 4kw donkey engine

- Rear ramp

REMOVABLE DETACHABLE GOOSENECK TRAILER FOR SALE USING TIPS

Compared to other heavy haulage trailers for sale, the detachable neck gooseneck trailer is safer to load from the front than from the rear or side.

Loading from the back is not safe, especially when handling heavy equipment.

The rear has a ramp. Therefore, long ramps are required to load heavy equipment.

Heavy objects may fall from the ramp or from the rear to the trailer platform.

Such a drop may even damage the detachable neck gooseneck trailer or goods before transportation.

REMOVABLE GOOSENECK TRAILER CHARACTERISTICS

When loading mechanical equipment on the low bed semi-trailer, mechanical equipment is usually loaded from the rear end of the semi-trailer, that is, the mechanical equipment is moved from the rear, or the wheels are removed. This method not only has low loading efficiency but also is prone to the problem of mechanical equipment turnover; When the trailer which detaches gooseneck passes the road section with obstacles above, it is particularly difficult for the trailer to pass because the cargo platform is fixedly connected with the removable gooseneck and platform; When encountering a curve road, due to the long overall length, the overall passing efficiency of the trailer is low. Although some semi-low loaders for sale are equipped with steering devices, manual operation is still required, and the steering efficiency is still not high. Therefore, it is necessary to improve it.

Removable Gooseneck Characteristics

The Detachable Gooseneck Trailer realizes the height adjustment of the platform, ensures that the detached gooseneck trailer can quickly pass through the road with obstacles above, realize the linkage between the steering device and the truck through the steering mechanism, and improve the efficiency when the trailer passes through the curve. Through the detachable connection structure between the gooseneck and the loading platform, the goods in the hydraulic detachable gooseneck trailer can be loaded from the front, improving the loading efficiency and ensuring safety during loading.

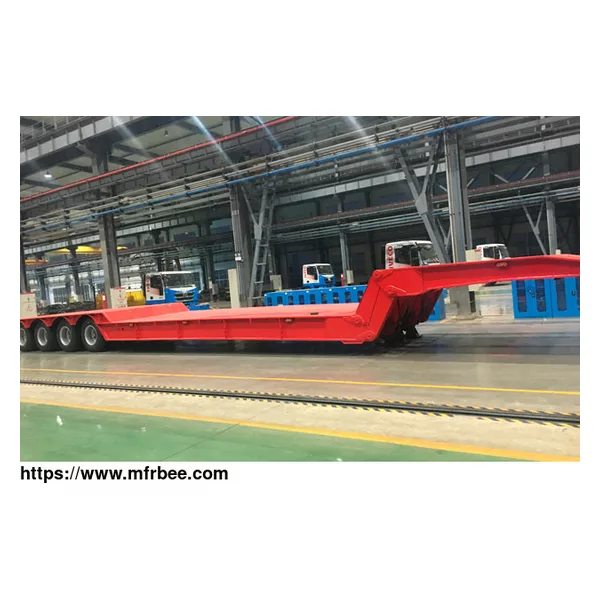

FRONT LOAD REMOVABLE GOOSENECK TRAILER GALLERY

Detached Gooseneck Trailer

Detachable Neck Gooseneck Trailer

Gooseneck Detach Trailer

DETACH GOOSENECK TRAILER FOR PICKUP

If you're in need of a heavy-duty detached gooseneck trailer that's compatible with your pickup truck, consider a detachable detach gooseneck trailer for pickup These detachable neck gooseneck trailers are designed with a removable front end that allows for easy loading and unloading of heavy equipment, making them a popular choice for construction and industrial projects. Our selection of detachable gooseneck lowboy trailers is built to withstand even the heaviest loads, with durable construction and advanced features that ensure reliable transport. Whether you're hauling construction equipment, vehicles, or other heavy cargo, our trailers offer a safe and efficient solution. Browse our selection today to learn more about removable gooseneck characteristics and find the perfect fit for your needs.

WHAT IS THE DIFFERENCE BETWEEN A GOOSENECK AND A REMOVABLE GOOSENECK TRAILER?

A gooseneck trailer and a detached gooseneck trailer are both types of trailers that attach to a truck using a gooseneck hitch. The main difference between the two is that a detachable neck gooseneck trailer has a detachable front end that can be removed for easier loading and unloading of equipment. This feature allows for greater flexibility and versatility when it comes to transporting different types of cargo.

In contrast, a standard gooseneck trailer has a fixed front end that is permanently attached to the trailer frame. While this type of trailer is still highly effective for hauling heavy equipment, it may not be as practical for certain types of loads that require more flexibility in the loading and unloading process.

Ultimately, the choice between a gooseneck trailer and a gooseneck detachable trailer depends on the specific needs of the user and the type of cargo that needs to be transported.
