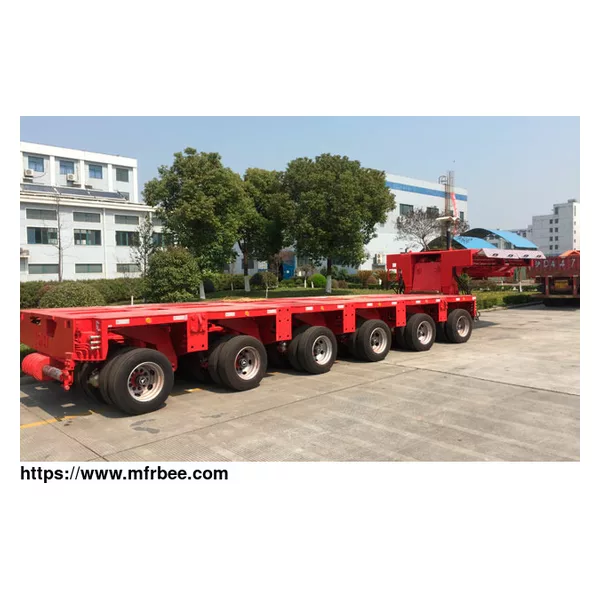

HYDRAULIC AXLE TRAILER

Hydraulic axles trailer is the basic model of the heavy cargo logistics transportation industry, which is the design basis of most heavy cargo transportation vehicles. Well deigned by Rui Trailer, one of the pro hydraulic axles manufacturers in China, our hydraulic trailer for sale adopts hydraulic suspension and integral traction steering, hydraulic control lifting, three-point or four-point support, all-wheel traction or forced steering, and all-wheel braking. Therefore, heavy haulage trailers for sale has the characteristics of low platform height, uniform axle load, small turning radius, flexible and reliable turning, hydraulic low loader trailer, etc. With the box-type chassis and modular design, our hydraulic lowboy trailer can be combinate according to different lengths and weights of cargo and can be combined horizontally and longitudinally.

Possessing the advantages of fast combinate, convenient installation, and simple and easy operation, our hydraulic axle semi low loader trailer has a certain self-loading and self-off loading capacity. When driving on up and down ramps or slopes, the platform can be adjusted within a certain range to maintain a balanced position. In addition, the hydraulic trailer is equipped with a hydraulic gooseneck, which can be used as a hydraulic semi-trailer, and is suitable for high-speed and long-distance driving on the expressway.

MULTI-AXLE HYDRAULIC MODULAR TRAILER SPECIFICATIONS

Number of Axle-line(n) 2 3 4 5 6

Speed(km/h) 580 580 580 580 580

Total Weight(t) 6832.8 10249.2 13665.6 17082 20498.4

Rated Payload(t) 61 25.8 91.5 38.7 122.8 52.4 152.5 64.5 18377.4

Dead Weight(t) 7 10.5 13.2 17.5 21

Load Per Axle Line(t) 34 16.4 34 16.4 34 16.4 34 16.4 34 16.4

Total Length(mm) 3000 4500 6000 7500 9000

Total Width(mm) 3000

Height(mm) 1175 ±300

Axles Distance(mm) 1500

Wheels Distance(mm) 1800

Tyre Specification 215/75R17.5

Rim Specification 6.00-17.5

Number of Tyre 16 24 32 40 48

Max.Turning Angle of Wheel 55°

Min.Turning Radius(mm) inner 450 inner 1500 inner 2600 inner 1500 inner 2000

outer4070 outer 5800 outer 7600 outer 5800 outer 6700

HYDRAULIC TRAILER MEANING

Realize the three/four-point support of the frame to make the axle load uniform.

The horizontal position of the frame can be adjusted when driving on slopes and ramps.

The frame can be lifted and lowered to realize certain self-loading and self-unloading.

When parking under heavy loads, the chassis of the modular hydraulic trailer can be lowered close to the ground to a free load of the tire.

The axle and tire can be lifted separately to facilitate maintenance and tire replacement.

When there are pits or bumps on the road, the load platform of hydraulic axle trailers can always remain horizontal when the vehicle is driving, and the shock absorption performance is excellent; The vehicle support system can be adjusted by the suspension hydraulic system to form three-point support or four-point support.

HYDRAULIC MULTI AXLE MODULAR TRAILER KEY FEATURES

Free combination with each module on longitudinal direction and side by side

Box-shaped design on the main chassis which with high payload and with integrated air and hydraulic oil tank inside

Four points support the hydraulic system which makes a load safe

Hydraulic pin for combination with each module, make operation job easy

Swivel head mounted to the module, make steering under control

Brand accumulator to keep overturning will not damage with trailer

Safety valve work on all suspension, to make sure all suspension keeps safe work

Maximum steering + / – 55° for all action

Hydraulic detach trailer in independent steering cylinder consist on every module

Dule line all-wheel brakes among hydraulic lowboy trailers

Adopt with today's technology on the hydraulic trailer which production can Compatible with Goldhofer THP/SL well
