Fireproof Ceiling Speaker

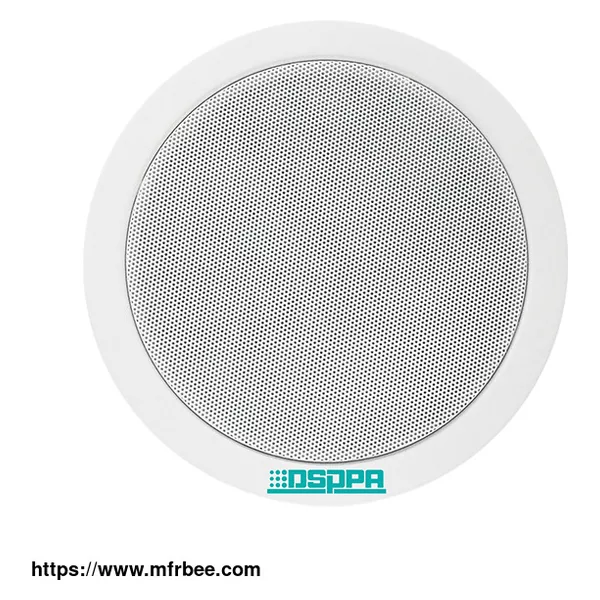

DSP602EN 6.5 Inch Fireproof Ceiling Speaker

DSP662 1~6W Ceiling Speaker with Fire Dome

DSP903 4.5 Inch Fireproof Ceiling Speaker with Transformer

DSP904 6W-10W Fireproof Ceiling Speaker

DSP922S 4.5 Inch Fireproof Ceiling Speaker with Transformer

DSP922S 4.5 Inch Fireproof Ceiling Speaker with Transformer

DSP6011EN 6.5 Inch Fireproof Frameless Ceiling Speaker

Features

● Adopts the fashionable thin-edge plane big cylinder and the carbon alloy aluminum mesh design

● With the RAL white coating so as to integrate with any indoor place perfectly.

● Equipped with a 6.5”unit, full-range designed loudspeaker

● With magnetic circuit encapsulated with special engineering plastic process

● Equipped with fireproof Hood, enhance the protection of electric cable connection terminal.

Introduction

The ceiling speaker DSP602EN adopts the fashionable thin-edge plane big cylinder and the carbon alloy aluminum mesh design with the RAL white coating so as to integrate with any indoor place perfectly. Equipped with a 6.5” unit, full-range designed loudspeaker with magnetic circuit encapsulated with special engineering plastic process, and the drum paper formed with tripping and hot pressing of algae salved organisms, for the purpose of super-strong reproduction of voice and music. Equipped with a fireproof Hood, enhance the protection of the electric cable connection terminal.

Specification

Model DSP602EN

Standards EN44-24: 2008 Loudspeaker for voice alarm

system for fire detection and fire alarm system

Environmental Class EN54-24 Type A, indoor places

Protection Grade EN60529 IP21C

Ways/Speakers/Type 1 way, double cone full range Ø156mm, 100V system

Transformer 100V,6W-3W-1.5W

In axis frecuency 90-18000Hz

response(±7dB)

Sensitivity (@1m, 1W) 91 dBSPL(200Hz-10kHz pink noise)

Coverage angle 1kHz(HxV) 180°

SPL max (@1m, Pmax) 99dB(200Hz-10kHz pink noise)

Nominal power 6W

Impedance at 1000Hz 180Ω(6W),310Ω(3W),940Ω(1.5W)

Dimensions Ø190mm-P=108mm

Hole diameter Ø 168-172mm

Weight 1.0Kg

Material Flame retarding ABS

Connections Ceramic connector and thermal fuse

Now the ceiling speakers price is reasonable, anything you need, please contact us.
