Flap Wheel 19/32inch
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

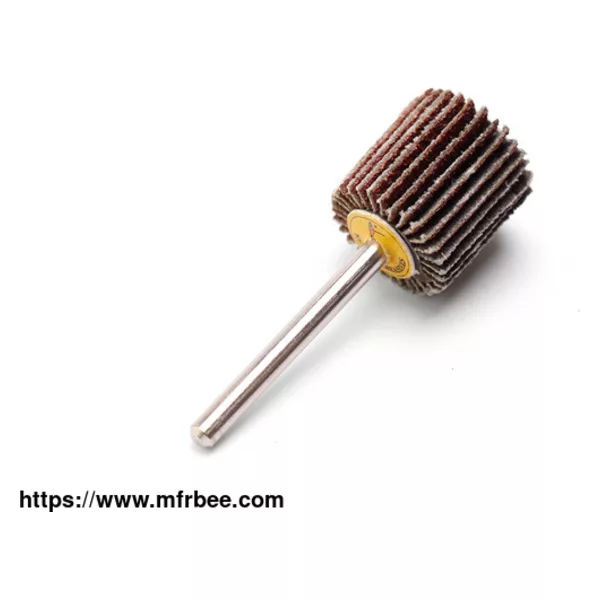

On the mounted aluminium oxide flap wheel, the flap made of coated abrasive is arranged radially around the tool axis in a fan-shaped structure.
Their flexibility enables them to fully adapt to the contour of the workpiece. Abrasive particles are embedded in a strong and flexible cloth backing material through a resin adhesive.
Flap Wheel 19/32inch Specification:
Diameter: 19/32 inch=15mm
Max. RPM: 25000 RPM
Raw Materials: Aluminum Oxide(AO), Silicon Carbide(SC), Zirconia(ZR), Ceramic Aluminum Oxide Combined (CAO)
Grit Size: 40#~1200#
Shank Diameter: 3mm/3.175mm (Other sizes can be customized)
Flap Wheel 19/32inch Materials that can be worked:
Aluminum
Cobalt-based alloys
Other non-ferrous metals
High-temperature-resistant materials
Nickel-based alloys (e. g. Inconel and Hastelloy)
Bronze
Hard non-ferrous metal
Titanium
Copper
Soft non-ferrous metal
Brass
Stainless steel (INOX)
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Annealed cast iron
Steel, cast steel
Flap Wheels with Shank
Abrasive flap wheels for wood with Shank is suitable for grinding small area, dead angle, inner hole surface, and slit gaps that are difficult to reach. The Features of the abrasive clothes are
various with multipurpose application capacity. It is flexible and rich in tensile strength. It could remove the burr and uneven, rough surface with fast grinding force efficiently, meanwhile, can
make sure the performance result achieves a slightly finer surface. It is a good product for pre-painting or mirror finishing preparation procedures.
Advantages：
High flexibility to optimum adaptation to contours
Steadily high stock removal through the entire tool life and aggressive coated abrasive resin is freed up constantly
The design of opening spaces and flat bonded make the abrasive tools can process a face-down position, so can touch closely to the edges and corners.
Flap Wheel 19/32inch Applications
Leveling
Deburring
Surface work
Weld dressing
Structuring (matt finishing, brush matting, and satin finishing)
Fine grinding in multiple steps
Flap Wheel 19/32inch of Applicable Industries
Applicable Industries
■ Chemical processing industries
■ Building
■ Steelworks
■ Tool and mold processing
■ Pipeline
■ Shipping Building
■ Automotive industry
■ Aerospace, gas turbine treatment and repair
■ Machine engineering
Flap Wheel 19/32inch of Applicable Industries
Application Purpose
Levelling
Deburring and Welding grinding
Structuring Surfaces
Step-by-step fine grinding
Flap Wheel 19/32inch of Applicable Industries
Safety Warning of Flap Wheel 19/32inch
Instructions:
Safety Warning of Flap Wheel 19/32inch
Please try to choose an operation indoors environment and wear protective guards and goggles.
Never exceed the recommended maximum permitted rotational speed for safety reasons.
In order to have a good stock removal rate, quality of surface, and thermal laoding on the workpiece, the best performance would be with a recommended cutting speed of 15-20m/s.
Don't push and increase the pressure during the processing to achieve a finner surface looking, but try to switch to diffirent grit flap wheels.
Safety Warning:
The clamping length between shank and grinders should be more than 15mm.
Never exceed the maximum safe speed when the shank is extra long. Try to consult your sales to check the safety rotating speed before use.
