Rotary Kiln
Product Quick Detail
- China
- Henan
- Packaging
- standard containers, bare main machine, motors and small parts are packed in wooden cases.
- Delivery
- 20 Days
Specifications
Product Specification: Φ2.5×40 m - Φ6.0×95 m
Processing Capacity: 180 - 10000 t/d
Processible Materials: Roasting cement clinker in the industries of metallurgy, refractory matter and chemical plant.
Application Range: Industries of construction materials, metallurgy, chemical engineering and environment protection.
Introduction to Rotary Kiln:

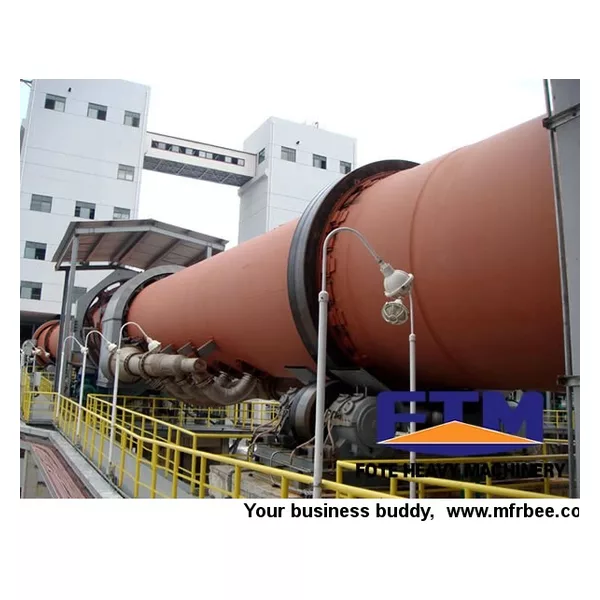

Rotary kiln refers to the lime rotary kiln and indirect fired rotary kiln, and is mainly used for calcining cement clinker, with dry process production and wet process production two kinds. Rotary kiln is mainly used to roast lean iron ore magnetization, chromium and nickel iron in metallurgical industry.
.jpg)
Classification of rotary kiln:
According to different purposes, rotary kiln can be classified into cement rotary kiln, lime rotary kiln and so on. Rotary kiln can be used for cement clinker calcinations and high-temperature calcination of lean iron ore, limestone and other materials.
Function of rotary kiln:
What is the purpose of rotary kiln in industrial field? Rotary kiln is cylinder equipment for calcination of materials, mainly used for calcining raw cement materials into cement clinker in cement making field, and producing fertilizer and sulfur ore in the field of chemical. Cement rotary kiln works with a certain inclination angle about 3.5-6%. Low speed rotation of the rotary kiln makes materials in it rotate while rotating kiln burner jets flame constantly, to heat materials and make materials take physical and chemical reactions. Fote rotary calcining kiln is with good quality and high yield.
.jpg)
Other application of rotary kiln:
Rotary kiln is mainly used for heating and sintering ores and other mineral materials in metallurgy, building materials and other fields, such as heating and sintering argilla, bauxite, limestone, cement, magnesium, alumina, aluminum hydroxide, high alumina products, refractory materials, fly ash, and other powdered material and mineral grain. Of course, lime kiln, lime pit or lime rotary kiln is mainly used for the calcination of heating and sintering limestone.
Structure and working principle of rotary kiln:
Rotary kiln is mainly composed of a tube of rotary kiln body, support device, sealing devices, feeding device, combustion devices of kiln head, etc. Rotary kiln is a round cylinder, mounted on several tugs inclined. After deceleration, the motor drives pinion to rotate the big rear wheel, so as to rotate the tube kiln body.www.china-ftm.com/pros/rotary_kiln.html
Technical data
| Product specifications(m) | Kiln dimensions | Capacity(t/d) | Rotation speed(r/min) | Motor power(kw) | Total weight(t) | Note | ||
| Diameter(m) | Length(m) | Obliquity(%) | ||||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | Kiln with shaft cyclone preheater |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ---- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.29 | ---- |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ---- |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 | 0.437-2.18 | 55 | 201.58 | Outside disassemble kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ---- |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | Outside disassemble kiln |
| Φ3.0×60 | 3 | 60 | 3.5 | 300 | 0.3-2 | 100 | 310 | Alumyte-alumina forge kiln |
| Φ3.2×50 | 3.2 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | Outside disassemble kiln |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | Kiln with preheater precalcine |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | Kiln with preheater precalcine |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating kiln for using ofterheat |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | Kiln with preheater precalcine |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | Kiln with preheater precalcine |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.4-3.98 | 375 | 633 | Kiln with preheater precalcine |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | Kiln with preheater precalcine |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | Kiln with preheater precalcine |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | Kiln with preheater precalcine |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | Kiln with preheater precalcine |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | Kiln with preheater precalcine |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | Kiln with preheater precalcine |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | Kiln with preheater precalcine |
