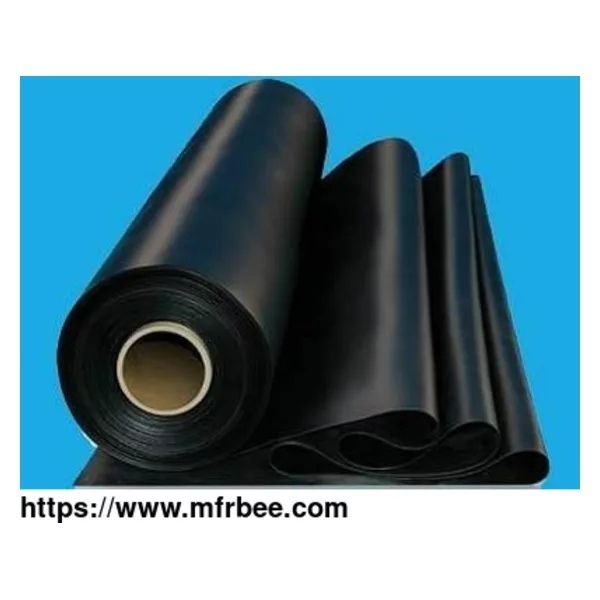

Styrene Butadiene Rubber Sheet (SBR)
Used for gaskets and other sheet applications.
Data | Unit | A | B | C | D | E | F | G |
Tensile Strength | Mpa | 8.0 | 7.5 | 6.0 | 5.0 | 4.0 | 3.0 | 2.0 |
Density | g/cc | 1.45 | 1.45 | 1.50 | 1.50 | 1.50 | 1.60 | 1.70 |
Hardness | Shore | 65+/-5 | 65+/-5 | 65+/-5 | 65+/-5 | 65+/-5 | 65+/-5 | 65+/-5 |
Elongation | % | 300 | 300 | 300 | 300 | 250 | 200 | 150 |
Color: Black,green,red.
Size: 1-60mm Thickness * 500-2000mm Width * 1-50m Length
Two sides can be smooth, or fabric pattern, Fabric insertion available for request.
Nitrile Butadiene Rubber Sheet (NBR)
NBR sheet provides superior resistance to oils, solvents gasoline and other hydrocarbon chemicals. It is resistant to abroad range of aromatic oils and has greater resistance than oil
resistant sheet or neo-prene sheet. Recommended for applications where the rubber is in contact with oils and solvents.
Data | Unit | A | B | C | D | E |
Tensile Strength | Mpa | 8.0 | 6.0 | 5.0 | 4.0 | 3.0 |
Density | g/cc | 1.40 | 1.45 | 1.50 | 1.50 | 1.6 |
Elongation | % | 400 | 350 | 300 | 250 | 200 |
Hardness | Shore | 65+/-5 | 65+/-5 | 65+/-5 | 65+/-5 | 65+/-5 |
Size: 1-60mm Thickness * 500-2000mm Width * 1-50m Length
Color: Black,green and others
Two sides can be smooth, or fabric pattern, Fabric insertion available for request.
Neoprene Rubber Sheet (CR)
Neoprene is used where moderate oil and petrolium based solid resistance is required. Neoprene is an excellent product used for vibration, dampening as gasket applications.
Data | Unit | A | B | C | D | E |
Tensile Strength | Mpa | 8.0 | 6.0 | 5.0 | 4.0 | 3.0 |
Density | g/cc | 1.40 | 1.45 | 1.50 | 1.50 | 1.60 |
Elongation | % | 400 | 350 | 300 | 250 | 200 |
Hardness | Shore | 65+/-5 | 65+/-5 | 65+/-5 | 65+/-5 | 65+/-5 |
Specification: 1-60mm Thickness * 500-2000mm Width * 1-50m Length
Color: Black and others
Two sides can be smooth, or fabric pattern, Fabric insertion available for request.
Silicone Rubber Sheet
Description:High tension, oil-proof, high temperature resistance and anti-aging, poison and odor free. Used in the oil medium of low &high temperature, with good sealing performance, which is widely apply to produce seals in the electronic, pharmacy and chemical industry
Data | Unit | A | B |
Tensile Strength | Mpa | 8.0 | 6.0 |
Density | g/cc | 1.2 | 1.25 |
Elongation | % | 400 | 300 |
Hardness | Shore | 60+/-5 | 60+/-5 |
Specification: 1-60mm Thickness * 500-2000mm Width * 1-50m Length
Smooth both sides; Color: White, Black and others
Ethylene propylene diene Rubber Sheet(EPDM)
Description:A superior rubber sheet for outdoor and high ozone environment applications. EPDM rubber sheet also provides better resistance to acids, alkali and ketones than other rubber sheets. EPDM sheet is used for roofing and automotive applications where high temperature (up to 150C)and excellent aging characteristics are required. However, EPDM sheet has poor resistance to fuels, oils and alcohols.
Data | Unit | A | B | C | D | E | F |
Tensile Strength | Mpa | 10.0 | 8.0 | 6.0 | 5.0 | 4.0 | 3.0 |
Density | g/cc | 1.25 | 1.40 | 1.45 | 1.45 | 1.50 | 1.60 |
Hardness | Shore | 50+/-5 | 65+/-5 | 65+/-5 | 65+/-5 | 65+/-5 | 65+/-5 |
Elongation | % | 350 | 400 | 350 | 300 | 250 | 200 |
Specification: 1-60mm Thickness * 500-2000mm Width * 1-50m Length
Smooth both sides; Color: Black,red and others
