CSD-TB150 Sliding Door (Thermal Insulation)
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Wholesale Sliding Glass Patio Doors

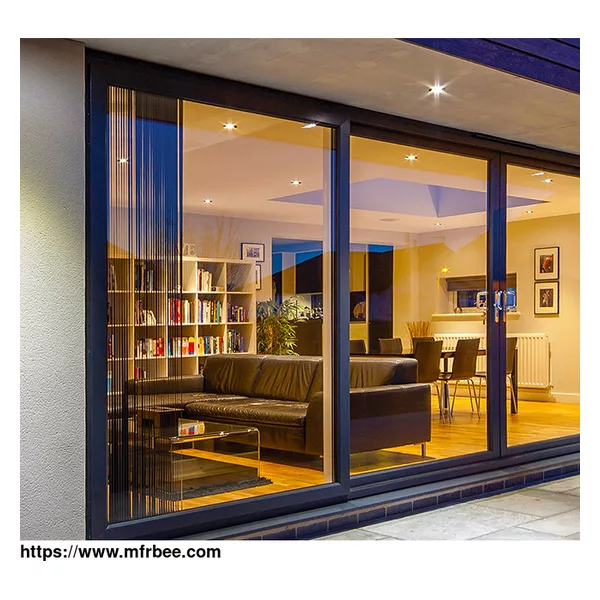

CSD-TB150 is the thermally insulated sliding system, which is the ideal solution for projects requiring wide spans with reasonable aluminum sight lines. Massive yet elegant glazing surfaces are
achieved while maintaining high functionality, performance, and minimal architectural design.
Overview of CSD-TB150 Custom Patio Sliding Door (Thermal Insulation)
System Sliding Door(Thermal Break)
Model No. CSD-TB150
Material Aluminum Alloy/Glass
Hardware Chinese top brand(Kin Long)/Germany brand
Glass Type Tempered/Float/Laminated/DGU/Ceramic Fritted/LowE/Tinted/Reflective/Heat Soak
Cooperated Glass Brand Vitro(Formerly PPG)/Pilkington/Xinyi(SYG)/Yaopi(SYP)/Fuyao/Southglass(SG)/Kibing/CNG/TaiwanGlass
Surface Treatment Powder Coating/PVDF/Anodized/Electrophoresis/Wooden Grain
Profile Brand 6063-T5/6063-T6
Thermal Profile Thermal Break
Standards In Compliance With ASTM/AS/NZS/AAMA/NFRC/EN/BSI/ISO
Application Residential Apartment, Villa/Commercial Hotel, Mall, Office, Public Organization
System Customization Available
Data of CSD-TB150 Thermal Sliding Door (Thermal Insulation)
Testing Data of CSD-TB150 Sliding Door (Thermal Insulation)
Test Pressure Results
Open and Close Operable Sash Test (AS 2047 & AS/NZS 4420.1-2016) -- No damage was observed after the test.
Preloading (AS 2047 & AS/NZS 4420.1-2016) +0.81kPa No separation, plastic deformations or deleterious was observed.
-0.85kPa
Structural Test at Serviceability Limit State Wind Pressure (Wsls) (AS2047 & AS/NZS 4420.1-2016) +1.62kPa No glass breakage, collapse and permanent deformation was observed. Deflections of mullions
and transomes as well as glass panel were within the allowable deflection limits.
-1.69kPa
Operating Force Test (AS 2047 & AS/NZS 4420.1-2016) -- The operating force of the specimen was within the allowable value.
Air Infiltration Test (AS 2047 & AS/NZS 4420.1-2016) 300Pa The rate of air leakage of the specimen was within the allowable values.
-300Pa
Water Penetration Test under Static Pressure (AS 2047 & AS/NZS 4420. 1-2016) +486Pa No water leakage was observed.
Structural Proof Test at Ultimate Limit State Wind Pressure (Wuls) (AS 2047 & AS/NZS 4420.1-2016) +2.50kpa There was no collapse of the test sample.
-2.60kpa
Thermal Data of CSD-TB150 Sliding Door (Thermal Insulation)
NFRC procedures NFRC100SB, NFRC200-2010 and NFRC500-2010
Software tools THERM 7.4.3.0 and WINDOW 7.4.6.0
Configuration 6 single silver low-e CAVS S1 on Clear #2 + 12Ar + 5/1.52PVB/5 Clear
Panel Dimension 2060mm Wide 2840mm High
Frame Painted Aluminum
Panel U-value 3.573W/m2k
Visible Light Transmission 0.384
SHGC 0.33
Condensation Resistant 28.1
Fram Data of CSD-TB150 Sliding Door (Thermal Insulation)
Parts Location Frame Area/m2 Edge Area/m2 U-Value(Frame) U-Value(Edge)
W/m2k W/m2k
Left Header 0.1271 0.0515 7.5335 2.1859
Left Jamb 0.3423 0.1617 10.5878 1.9342
Right Header 0.1239 0.0515 9.0795 2.0185
Mullion 0.1229 0.315 21.548 1.8443
Right Jamb 0.3581 0.1617 8.3726 2.0383
Left Sill 0.1155 0.0515 7.4133 2.1807
Right Sill 0.1187 0.0515 10.922 2.0526
Glass Data of CSD-TB150 Sliding Door (Thermal Insulation)
Glass Data: 6mm HS (CAVS S1)#2 +12Ar +6-T-HST
Visible Light SHGC SC NFRC U-value STC
W/m3k(Argon)
T% R-out% R-in% Winter Summer
72 12 12 0.55 0.63 1.55 1.54 36
Benefits of CSD-TB150 Sliding Door (Thermal Insulation)
Highly energy saving thanks to the exceptional thermal performance
Modern design
Ease of use and high functionality
Exceptional sound insulation
Increased static loads and functionality in case of severe weather conditions
Exceptional quality with certified performances
Ideal for wide spans
High security level
Recommended CAS Facade Products
Our products are designed to snap together perfectly, organically or with the help of couplers. This ensures a streamline design throughout your project. Below is a list of compatible products.
We can offer types of sliding doors for patio for sale, if you have needs to buy custom made sliding patio doors, please visit our website.
As a sliding door company, we will do our best to meet all the needs of customers.
If you want to know more details of facade house design, please contact us.
