EDI module is usually placed behind the reverse osmosis system, which not only overcomes the lack of deep desalination of reverse osmosis effluent, but also further removes trace carbon dioxide, residual salt, silicon dioxide, boron and total organic carbon plasma in RO water, greatly improving the quality of purified water.
Electrodeionization water treatment is widely used in biotechnology, pharmacy and other industries that must generally comply with and comply with USP, EP, JP and ChP regulations.
※ Post EDI Ultrafiltration
※ A post EDI UF System with 6000 Daltons Molecular Weight Cutoff membranes serves to produce highly purified water having a compliance with low endotoxin values.
※ A post EDI UF can have a TOC reduction UV with 194 nm wavelength or 254 nm wavelength for bacterial control as an option.
EDIWaterTreatmentSystem Specification
Water inflow requirements | |
TEA(with CO2) | <25mg/L as CaCO3 |
Hardness | <1mg/L as CaCO3 |
TOC | <0.5mg/L |
Temperature | 5-43℃ |
PH | 5-9 |
Silicon | <0.5mg/L |
Free Chlorine | <0.05mg/L |
Water inlet pressure | 30-100psi |
Fe, Mn, H2S | <0.01mg/L |
Rate of recovery | 90-95% |

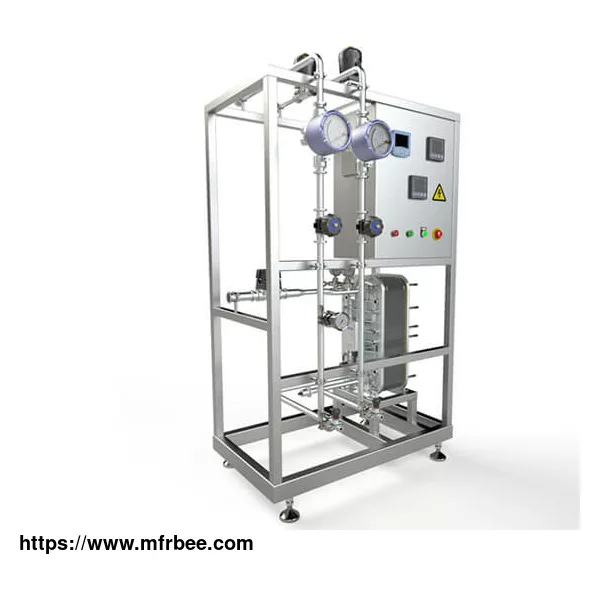

What Is Edi Water Treatment System
EDI stands for Electrodeionization, which is a water treatment technology that utilizes ion exchange membranes and an electric field to remove ions from water.
The EDI water treatment system is typically used to produce high-quality water for industrial and laboratory applications. The EDI plant water treatment system works by passing water through a series of ion exchange membranes and electrodes, which remove dissolved salts and other ions from the water.
Unlike other water treatment technologies,EDI system in water treatment plant does not require chemicals to regenerate the ion exchange resin, making it a more environmentally friendly option. EDI systems are also relatively compact and easy to maintain compared to other water treatment technologies.
Overall, EDI is an effective and efficient way to remove impurities from water, and it is commonly used in industries such as pharmaceuticals, electronics, and power generation.
Pharmaceutical purified water systems adopt the latest processes such as reverse osmosis and EDI. Purified water distribution system designs a complete set of purified water process in a targeted manner. The quality of purified water for pharmaceutical manufacturing meets the requirements of the current USP, EP, JP and ChP for purified water.
