ASTM B338/ ASME SB338 TITANIUM ALLOY STEEL TUBE

ASTM B338 Titanium Tube (Ti Tube) has a superior strength-to-weight ratio and corrosion resistance is one of the common titanium products. We generally divide ASTM B338/ ASME SB 338 Titanium tubes into two types, one is called the seamless titanium tube, and the other is called the welded titanium tube.

ASTM B338/ ASME SB338 TITANIUM ALLOY STEEL TUBE PROVIDED BY YUHONG

ASTM B338/ ASME SB338 TItanium Alloy Steel Tube

YUHONG GROUP provides the best ASTM 338/ ASME SB338 Titanium Alloy Steel Tube including straight tube, U tube for heat exchanger, boiler, and superheater.

GR.1 TItanium Alloy Steel Tube

GR.2 TItanium Alloy Steel Tube

ASTM B338/ ASME SB338 TITANIUM ALLOY STEEL TUBE FEATURES

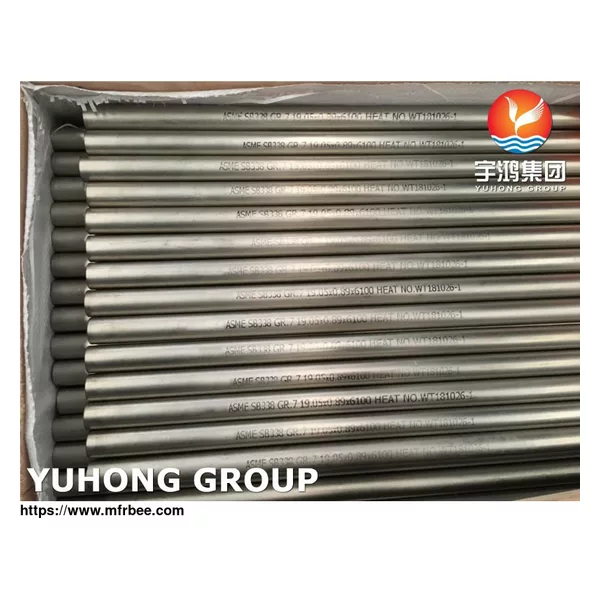

ASTM B338 / ASME SB338 Titanium Tube Grade 7 UNS R52400 Alloy Steel Seamless Tube Titanium grade 7 is a corrosion-resistant alpha titanium alloy with similar mechanical properties to the commercially pure grades. There are 28 grades of titanium and titanium alloys for tubing purposes, among which Titanium Grade 2, Grade 7, and Grade 12 are most often seen in tubing applications.

ASME SB-338 is the standard specification for seamless and welded titanium and titanium alloy tubes or tubing which are intended for surface condensers, evaporators, and heat exchangers. ASME SB-338 has a small palladium addition to improving corrosion resistance, particularly in mineral acids and strong brines.

ASTM B338/ASME SB338 TITANIUM ALLOY TUBES TYPE

ASTM B338 Specification ASTM B338/ASME SB338

ASTM B338 Copper&Copper Alloy Tube Type Pulp and paper production, Waste treatment

ASTM B338 Tube Size in Outside Diameter Seamless - 1/4" NB to 12" NB Welded / ERW- 1" NB to 16" NB

ASTM B338 Tubing Length 5 to 7 Meters, 9 to 13 Meters, Single Random Length, Double Random Length And Customize Size.

ASTM B338 Heat Changer Tube Thickness Schedule 10 to Schedule 160

ASTM B338/ASME SB338 TUBING CHEMICAL COMPOSITION

UNS No. ASTM B338 Titanium Alloy Tube (%)

N C H Fe O AI V Mo Ni Ti

GR.1 ≤0.03 ≤0.08 ≤0.015 ≤0.2 ≤0.18 Balance

GR.2 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25 Balance

GR.3 ≤0.05 ≤0.08 ≤0.015 ≤0.3 ≤0.35 Balance

GR.7 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25 Balance

GR.9 ≤0.02 ≤0.08 ≤0.015 ≤0.25 ≤0.15 2.5-3.3 2.0-3.0 Balance

GR.12 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25 0.2-0.4 0.6-0.9 Balance

GR.16 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25 Balance

ASTM B338/ASME SB338 TUBING TENSILE REQUIREMENT

UNS No. Tensile Strength Yield Strengh Elongation

min MPa min MPa min%

GR.1 σb≥240Mpa 138Mpa≤σ0.2≤310Mpa δ≥24%

GR.2 σb≥345Mpa 275Mpa≤σ0.2≤450Mpa δ≥20%

GR.3 σb≥450Mpa 380Mpa≤σ0.2≤550Mpa δ≥18%

GR.7 σb≥345Mpa 275Mpa≤σ0.2≤450Mpa δ≥20%

GR.9A σb≥620Mpa 483Mpa≤σ0.2 δ≥15%

GR.9B σb≥860Mpa 725Mpa≤σ0.2 δ≥10%

GR.12 σb≥483Mpa 345Mpa≤σ0.2 δ≥18%

GR.16 σb≥345Mpa 275Mpa≤σ0.2≤450Mpa δ≥20%

ASTM B338/ASME SB338 TUBING APPLICATIONS

Chlorination systems

Flue gas scrubbers

Outlet ducting and stack liners for power plants, pulp and paper bleach plants, sulfur dioxide scrubbers, and weld overlay of less corrosion resistant metals

Acid production and pickling systems

Pharmaceutical industries use alloy fittings and tubing to avoid contamination caused by corrosion related failures

Cellophane manufacturing

Chlorination systems

Pesticide production

Incineration scrubber systems

Chemical process industry in equipment like flue gas scrubbers, chlorination systems, sulfur dioxide scrubbers, pulp and paper bleach plants, pickling systems, and nuclear fuel reprocessing

Waste water processing

Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings

Flue gas desulfurization systems

Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping

Sour gas wells

Pulp and paper production

Waste treatment

Pharmaceutical and food processing equipment

Alkaline Media

Inorganic Salt Solutions

Organic Chemicals

Organic Acids

Oxygen

Hydrogen

Sulfur Dioxide

Hydrogen Sulfide

Liquid Metals Chlorine Chemicals

Hydrochloric Acid

Phosphoric Acid

Sea Water

Sulfuric Acid

Nitric Acid

Anodizing and Oxidation Treatments

We can offer sorts of steel hose fittings for sale, if you have needs, please contact us.
