BEST MINI HVLP SPRAY GUN TH102AG

Top coating & general purpose

Gravity feed

No o-ring design

Unique dual-color ring & knobs

High-grade S.S tip & needle

2-finger trigger

Product review

ZEGO provides the best mini hvlp spray gun, and the customers will select their suitable tools for work. Best mini hvlp spray gun TH102AG has a gravity feed. With no o-ring design and a unique dual-color ring and knobs, it can be used for top coating and general purpose. Besides, this type of spray gun mini hvlp has high-grade S.S tip and needle, 2-finger trigger, which can be easily handled and controlled.

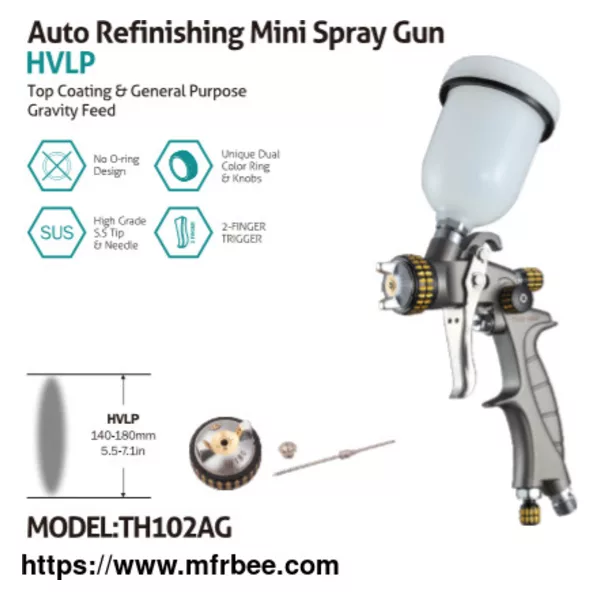

Auto Refinishing Mini Spray Gun HVLP TH102AG

Atomization Technology HVLP

Model TH102AG

Nozzle Range 0.5-1.2mm

Pattern(1.3mm) 140-180mm

5.5-7.1in

Recommended Air Inlet Pressure 1.5bar

22psi

Air Consumption 200l/min

7cfm

Air Inlet G/NPT 1/4"

Cup 100ml

Plastic

Weight(Gun Only) 322g

Material Body Aluminium

Die-casted

Air Cap Special Selected Brass

Nozzle/Fluid Tip High Grade Stainless Steel

Needle High Grade Stainless Steel

Specifications of Best Mini HVLP Spray Gun TH102AG

Type of feed Nozzle Spray pattern Fluid output Air consumption Air pressure Cup volume

Model mm mm ml/min NL/min MPa ml

TH102AG Gravity φ0.5 90-130 20 200 0.15-0.2 100

φ0.8 140-180 30

φ1.0 50

φ1.2 70

Parts List of Best Mini HVLP Spray Gun TH102AG

No. Description Qty No. Description Qty No. Description Qty No. Description Qty

1 Gun body 1 15 Air valve spring 1 29 Hinge pin 1 43 Cup adapte 1

2 Needle packing screw washer 1 16 Air valve spindle 1 30 Washer 1 44 Strainer 1

3 Needle packing spring 1 17 Air valve washer 1 31 Gasket 1 45 Cup 1

4 Needle packing washer 1 18 Air valve 1 32 Retainer 3 1

5 Needle packing gasket 1 19 Air valve seat 1 33 Spray pattern adjust adapter 1 Accessories

6 Needle packing screw 1 20 Sealing screw 1 34 Spray pattern adjust lever 1 46 Multipurpose spanner 1

7 Air baffle 1 21 Retainer 4 5 35 Washer 47 Brush A 1

8 Washer for nozzle seat 1 22 Air adjust adpter 1 36 Spray pattern adjust knob 1 48 Male plug 1

9 Nozzle seat 1 23 Air adjust knob 1 37 Cross head screw 1

10 Nozzle 1 24 Gland seal 1 38 Needle adjust adapter 1

11 Air cap 1 25 M12X1 joint 1 39 Needle 1

12 Washer for air cap 1 26 Washer 1 40 Needle adjust spring 1

13 Locking ring 1 27 Trigger 1 41 Spring plug 1

14 Retainer 1 28 Trigger pin 1 42 Needle adjust knob 1

Patented cup liner for smooth material delivery

Specially for metal flakes and high solid paints

2.0mm special nozzle setup

If you have needs to spray gun buy, please contact us.
