BEST AUTO PAINT SPRAY GUN KIT TH201AG

HVLP/MP/HP

All climates

Gravity feed

No o-ring design

Left-hand friendly

High-grade S.S tip & needle

Wide pattern

Waterborne compatible

Product overview

Auto Refinishing Mini Spray Gun HVLP TH102AG has the key features of high volume, low pressure. Compared with conventional spray guns, this kind of automotive paint spray gun kit can keep more consistent coverage, and with minimal overspray. ZEGO will provide the best auto paint sprayer for usage. We assure you that this best auto body paint gun would create great memory for you.

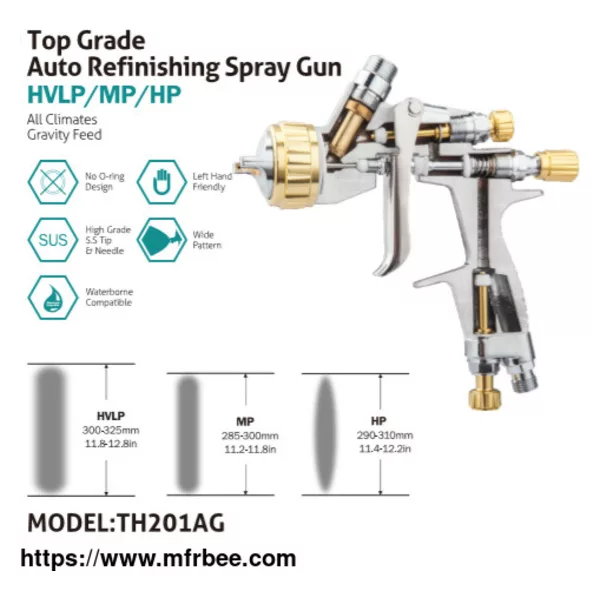

TH201AG Top Grade Auto Refinishing China Spray Gun

Atomization Technology HVLP MP HP

Model TH201AG

Nozzle Range 1.0-2.5mm

Pattern(1.3mm) 300-325mm 285-300mm 290-310mm

11.8-12.8im 11.2-11.8in 11.4-12.2in

Recommended Air Inlet Pressure 1.8bar 2bar 2bar

26psi 29psi 29psi

Air Consumption 465l/min 350l/min 275l/min

16.4cfm 12.4cfm 9.7cfm

Air Inlet G/NPT 1/4"

Cup 600ml plastic

Weight(Gun Only) 492g

Material Body Aluminium

Die-casted

Air Cap Special Selected Brass

Nozzle/Fluid Tip High Grade Stainless Steel

Needle High Grade Stainless Steel

TH201AG Car Paint Spray Gun Main Specifications

Model Type of feed Nozzle Spray pattern Fluid output Air consumption Air pressure Cup volume

mm mm ml/min NL/min bar ml

TH201AG Gravity φ1.2(HVLP) 230 160-190 460 1.75 600

φ1.3(MVMP) 260 170-200 360 2

φ1.4(LVHP) 270 160-190 270 2

TH201AG Car Paint Spray Gun Parts List

No. Description Qty No. Description Qty No Description Qty No。 Description Qty

1 Gun 1 13 Needle packing screw 1 25 Front end sealing ring 1 37 Spray pattem adjust knob 1

body

2 Air separation ring gasket 1 14 Retainer 2.5 2 26 Air valve washer 1 38 Cross hesd screw 1

3 Locking ring gasket 1 15 Air adjust 1 27 Needle plug sleeve 1 39 Air separation connector 1

4 Air separation ring 1 16 Retainer 6 2 28 Air valve spring 1 40 Cup connector 1

5 Air separation locating pin 1 17 Air adjust adapter 2 29 Needle adjust adapter screw 1 41 Strainer 1

6 Air separation ring cover 1 18 Gland seal 2 30 Back end sealing ring 1 42 Cup 1

7 Nozzle 1 19 Air adjust knob 1 31 Needle adjust adapter 1

Accessories

8 Retainer 1 20 G1/4(A)joint 1 32 Needle 1

9 Air cap 1 21 Trigger 5 33 Needle adjust spring 1 43 Multipurpose spanner 1

10 Washer for air cap 1 22 Trigger pin 1 34 Needle adjust adapter 1 44 Brush A 1

11 Locking ring 1 23 Retainer 4 2 35 Needle adjust knob 1 45 Male plug 1

12 Needle packing gasket 1 24 Washer 1 36 Washer 1

As a spray gun company, we will do our best to meet all the needs of customers.
