Optical fiber panel adapter socket without jumping fiber insertion should be a dustproof device. There is a plate and convex platform at the bottom of the box to facilitate the storage of optical
cable or redundant optical cable. The design of the optical path can meet the requirements of the optical fiber bending radius and the small amount of redundant optical fiber, and provide the
safety guarantee for access to the optical fiber.
Product Configuration List of FTTH-019 Optical Fiber Panel
Product Name Specifications Quantity
Box FTTH-019 1 PC
Optical Fiber Heat Shrinkable Casing Ф1.5×40mm 4 PCS
Nylon Cable Tie 3×100mm 4 PCS
Expansion Bolt M8×40mm 2 EST
LC Duplex Cover Adapter Green 2 PCS
SC Duplex Cover Adapter Green 2 PCS
SC/APC Pigtail SX 0.9mm G657A1 PVC White 1M 2 PCS
LC/APC Pigtail SX 0.9mm G657A1 PVC White 1M 2 PCS

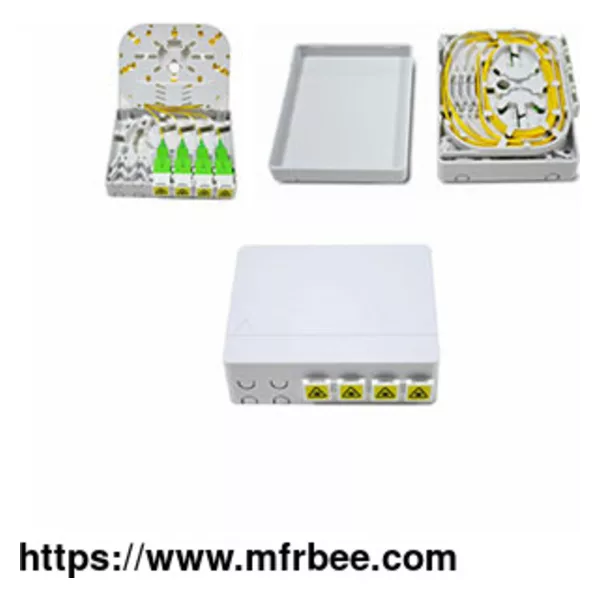

Poduct Structure
Provided by the front cover, and the optical fiber optical fiber panel drawing, fixed space and equipment, installation site connector and provide adapter interface and optical fiber connectors
protection at the bottom of the box.
Optical fiber panel with the introduction of cable fixed device and optical fiber fixed, protection device in the first place.
Optical fiber panel cover and bottom fiber access terminal box is made of high quality ABS (flame retardant polycarbonate) plastic material.
Optical fiber panel adapter socket without jumping fiber insertion should be dustproof device.
here is a plate and convex platform in the bottom of the box to facilitate the storage of optical cable or redundant optical cable.The design of optical path can meet the requirements of the
optical fiber bending radius and the small amount of redundant optical fiber, and provide the safety guarantee for the access to the optical fiber..
Features of FTTH-019 Optical Fiber Panel
Insertion loss:≤0.3 dB ,Return loss:≥50dB.
Tensile strength:> 50 N .
Job stress: 70 kpa to 106 kpa.
Using the temperature:- 40 ~ + 75 ℃.
Relative humidity: ≤85% (+ 30 ℃).
Protection grade: IP65 .
Provide 2 SC single+2 LC duplex adapter interface, realizing FTTH.
Internal inventory redundant optical fiber, convenient in operation and maintenance.
Optical fiber can be welding or cold, the applicable scope is wide,especially suitable for the use of multi-storey and high-rise tenants,easy to install, easy to install.
