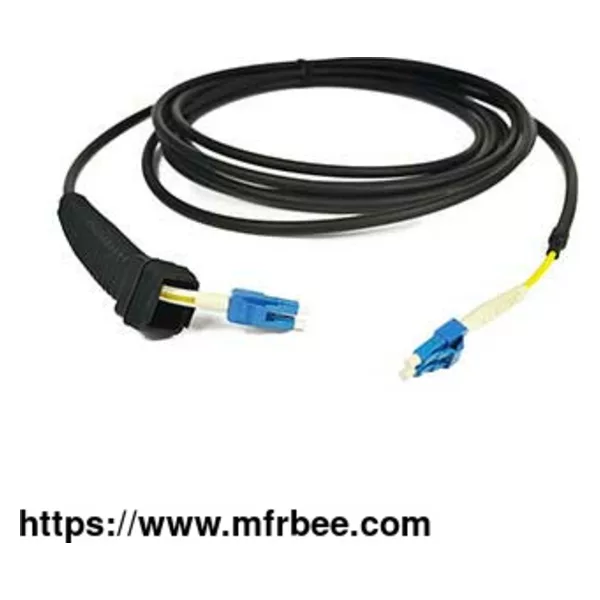

FULLX Outdoor Cable Assembly

Open bulkhead for easy access to SFP. Low insertion loss and added loss. Height of attenuation. IP67 water, dustproof, and corrosion-resistant. The plug has a tolerance-free design, free-floating on Z-axis. The material in the jumper cable is all-weather and UV-resistant. Mechanical performance IEC 61754-20 standard. RoHS and REACH materials are compliant. 100% Compatible with FullAXS Connectors and has site technical features.

Parameters of FULLX Outdoor Cable Assembly

Item Parameter

Single Mode Multimode

Insertion Loss Typical value≤0.15dB Typical value≤0.15dB

Maximum≤0.30dB Maximum≤0.30dB

Return Loss ≥60dB (APC) ≥30dB (UPC)

≥50dB (UPC)

Durability 500 times a plug

Operation Temperature -40 to + 85℃

Connector Types of FULLX Outdoor Cable Assembly

Type Reference Note

LC IEC 61754-20 Single mode duplex APC: Green connectors , Green boots

UPC: Blue connectors , White boots

Multimode duplex UPC: Grey connectors , White boots

Features

1. Open bulkhead for easy access to SFP.

2. Low insertion loss and added loss.

3. Height of attenuation.

4. IP67 water, dust proof and corrosion resistant.

5. Plug has tolerance free design, free floating on Z-axis.

6. The material in the jumpel cable are all-weather and UV-resistan.

7. Mechanical performance: IEC 61754-20 standard.

8. RoHS and REACH materials compliant .

9. 100% Compatible with FullAXS Connectors and has site tehnical features.

Application

1. Multi-purpose Outdoor.

2. For connection between distribution box and RRH.

3. Deployment in Remote Radio Head cell tower applications.

Now the price of pre terminated fiber cable assemblies is reasonable, if you have needs, please contact us.

As one of fiber optic companies, we will do our best to meet all the needs of customers.

If you want to know more types of optical fiber communication systems, please leave us a message.
