The xy galvanometer scanner laser using photoelectric sensor as feedback system is characterized by high repetition accuracy and linearity, and high cost performance. Mirror coating film selection
is rich, UV, green light, optical fiber, CO2 and other coating options, strict lens quality testing to ensure the requirements of lens flatness and damage threshold, photoelectric mirror is widely
used in galvo laser welding, flight marking, precision marking, precision cutting, and other industries.
Key Features Of Ultra-High Speed Galvo Scanner
Through kinematics and dynamics simulation, the mirror with certain inertia is matched for each galvanometer. Moreover, the rotor of the galvanometer has been optimized and has excellent dynamic
properties and response characteristics.
In addition, high precision miniature bearing axial preloads ensure high rigidity and low friction operation, and special attention is paid to bearing life.

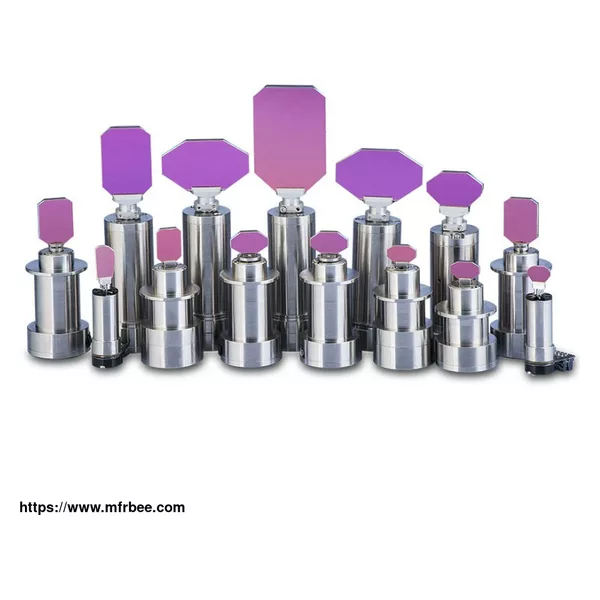

Photoelectric galvanometer is a kind of galvanometer which uses photoelectric sensor as feedback system. It is characterized by high repetition accuracy and linearity, and high cost performance.
Galvanometer scanning mirror is available for common laser wavelengths and energy levels. Moreover, all the mirrors are optimized to take into account the inertial load, rigidity and flatness of
the lenses.
Photoelectric galvanometer is widely used in flight marking, precision marking, precision cutting, precision welding and other industries.
Specifications Of Ultra-galvo Scanner
Photoelectric Galvanometer XXXS XXS XS S M L XL
Input Beam Aperture (mm) <7 7 8.5 10 14 20-30 50-80
Moment Of Inertia(g•cm2) 0.013 0.018 0.174 0.34 1.2 5.1 14.3
Force Constant(N•mm/A) 1.2 2.7 5.3 7.5 15 24 35
Coil Resistance(Ω) 2.1 3.6 2.1 2.7 2.6 1.58 0.9
Coil Inductance(µH) 35 70 63.5 165 275 300 343
Maximum Continuous Current(A) 2.3 2.3 2.3 2.5 3.5 5 7
Peak Current(A) 6 8 10 10 10 10 10
Rise Time(ms) 0.13 0.1 0.15 0.18 0.3 0.7 1.5
Weight(g) 13 18 50 220 300 400 460
Now the cost of galvanometer is reasonable, if you have needs, please contact us.
