2 Gangs Zigbee Switch Module

This is zigbee 2 gang switch module. You can choose the module has or has no neutral wire according to your needs. The devices connected to our smart switch module can be linked to your mobile phone by Zigbee signals. Then you can control 2 different channels by one mobile app.

Aihomestyle Types Of 2CH Zigbee Switch Module

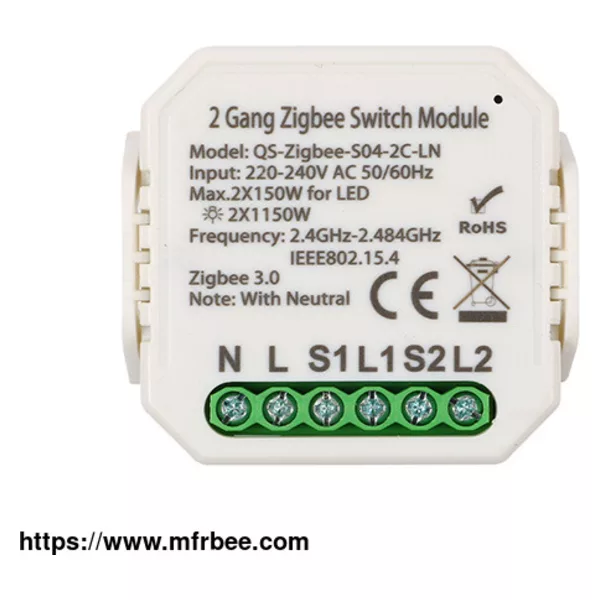

QS-Zigbee-S04-2C-LN

2 Gangs Smart Micro Switch Zigbee Module with neutral wire

Voltage 100-240V AC

Max. load: 2X1150W

Dims (WxDxH): 46x46x18mm

With reset key

QS-Zigbee-S04-2C-L

2 Gangs Smart Zigbee Wifi Switch Module with no neutral wire

Voltage 100-240V AC

Max. load: 2x100W for LED

Dims (WxDxH): 46x46x18mm

With reset key

Zigbee 2 Gang Switch Module Parameters

Protocol Zigbee 3.0

Operation frequency 2.4-2.484GHz IEEE802.15.4

Operation temp. -10ºC - +40ºC

Case temp. Tc +80ºC (Max.)

Operation range ≤ 200 m

IP rating IP20

Certificates CE ROHS

Warranty 2 years

2 Gangs Zigbee 3.0 Light Switch Module Features

Compatible with most Zigbee 3.0 gateway.

With/Without neutral wire.

2 gangs to control more devices according to your needs.

Mininum brightness is settable.

Easy to install behind the existing switch, keep function of manual switches.

App control is synchronized with the manual switch.

Voice control compatible with Google home and Amazon Alex etc.

Schedule,group, scene, automation functions organizable with other smart home devices,easily achieve home automation.

Accept customer customization for logo, color box. etc.
