ROTARY TABLE SHOT BLASTING MACHINE

Rotary Table Shot Blasting Machine for Sale

Rotary shot blasting machine or table type shot blasting machine is suitable for various shapes and dimensions, casts, forged parts, pressed parts, steel, and non-ferrous metal parts and parts made from fragile materials, cleaning surface, removing casting sand and filings, consolidating the surface (micro handling), roughing the surface before colouring, etc.

Rotary shot blasting machines are split into single used rotary table shot blasting machine and swing table blast machine. swing table shot blasting machine efficiency is much higher than the single rotary blast table machine.

Rotary Table Shot Blasting Machine Specifications

ITEM RT1000/900 RT1200/900 RT2000/1500

Maximum dimension of chamber (mm) Φ1350×560 Φ1350×860 Φ2654×560

Maximum workpiece weight (kg) 400 400 1000

Diameter of Turn Table(mm) Φ1200 Φ1200 Φ2500

Number of blast wheels and power (kw) 11 2×7.5 2×15

Overall dimension (mm) 1500×3450×3780 1900×3450×4160 4260×3647×5366

Material of table Manganese Manganese Manganese

Ventilation requirements (m3/h) 4000 6000 8000

Material of Protective lining Manganese/Cast alloy Manganese/Cast alloy Manganese/Cast alloy

Material of blast chamber Mild steel Mild steel Mild steel

Swing Tables Shot Blasting Machines Basic Specification

ITEM RTD1000 RTD1200 RTD2000

Maximum Diameter of Rotary table (mm) Φ1000 Φ1200 Φ1500

Maximum workpiece weight (kg) 400 400 1000

Number of blast wheels and power (kW) 11 2×7.5 3×11

Material of table Manganese Manganese Manganese

Ventilation requirements (m3/h) 4000 6000 8000

Material of Protective lining Manganese/Cast alloy Manganese/Cast alloy Manganese/Cast alloy

Material of blast chamber Mild steel Mild steel Mild steel

Rotary Table Shot Blast Machinery Systems

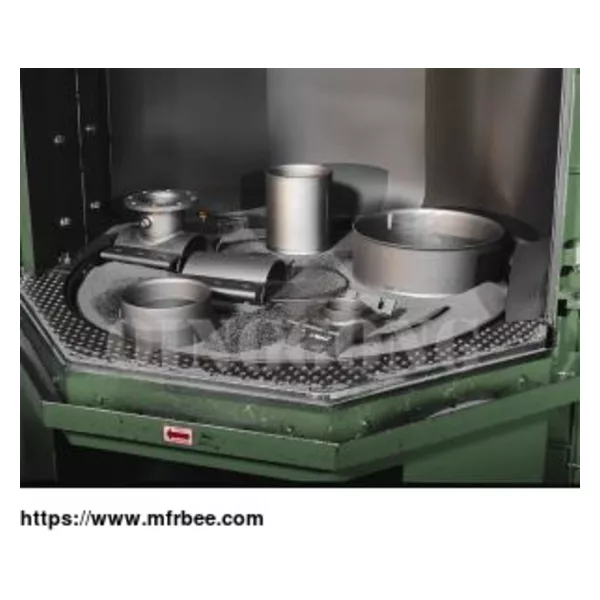

Treated objects are loaded on a perforated rotating table. A big door, provide simple and fast loading. The machine can have the table fitted to the machine's door, which enables loading with a hoist or fork-lift truck to the entire surface of the table. The double table shot blasting machine china also can be equipped with two tables, enabling simultaneous shot blasting of treated objects inside the machine and loading or turning treated objects in front of the rotating table blasting machine.

The rotatory shot blasting machine's housing is robust and protected by wear-resistant materials. High efficiency of the machine is enabled by the system for continued returning and cleaning of the abrasive, along with efficient turbines made from wear-resistant materials. Standard equipment of larger rotary shot blast machine includes PLC Siemens, display, timer automatic or manual mode, automatic start-up of turbines, working-hours counter, etc. For shot blasting cast containing larger quantities of casting sand, a magnetic sand cleaner may be installed.

table blast machine

rotary table shot blast machinery

satellite table shot blasting machines

Key Benefits and Features of Rotary Shot Blasting Machine

Customized, meet workpiece and workshop requirements.

Easy to install and operate.

Factory outlet, bottom price

Wide application, one machine with multiple workpieces.

High quality, 3 times acceptance

Acceptance three times before delivery

Equipped with environmental protection equipment, fully meet local environmental requirements

Applications of Rotary Shot Blasting Machine

Descaling for forgings and castings

Descaling for metal piece

Deburring for die cast parts

Descaling for heavy workpiece

If you want to know more kinds of blast pro shot blaster, please visit our website.
