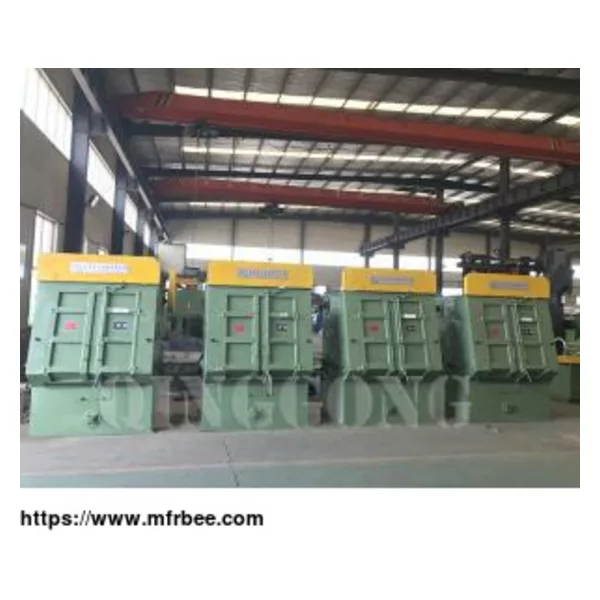

TUMBLE BELT SHOT BLASTING MACHINE

Tumble belt shot blasting machine or crawler shot blasting machine is the most universal among all shot blasters as their design makes them suitable for processing parts of different sizes in bulk loads. Shot blasting of casts, forged and pressed parts, remodelled cold or hot, of various complicated forms, springs, etc. (weighing up to 20 kg and manufactured in smaller and large series, the volume of a particular filling may be up to 500 L, mass up to 1,000 kg), cleaning surface, removing casting sand and filings and consolidating the surface (microhandling), roughing the surface before colouring, etc. Our company has tumble blaster for sale.

Tumble steel belt shot blasting machine with rubber belt

Machine Type MB150G MB300G MB400G

Productivity(t/h) 0.6-1.2 1.5-2.5 3-5

Max volume charge (dm3) 150 300 400

Max advised load (kg) 200 600 800

Drum diameter (mm) 650 1000 1000

Wheels 1 1(2) 1(2)

Wheel power (kW) 7.5(11) 11/15(2*11) 11/15(2*11)

Larger sizes are available, as are a huge range of options. Represented here are the Standard /Stock pre-engineered machines. Please contact us for further information.

Machines have a perpetual caterpillar made from perforated rubber belt. Treated objects are put by a special filling contraction to caterpillar. When caterpillar moves its special shape causes treated objects to turn and roll, which causes the whole surface of the treated object to be quality blasted in a jet of abrasive. For emptying, caterpillar is started-up in the opposite direction turning mode.

The machine's housing is protected by wear-resistant manganese steel. High efficiency of the machine is provided by the system for continued returning and cleaning of the abrasive, along with efficient turbines made from wear-resistant materials.

Standard equipment of larger machines includes: PLC Siemens, display, timer automatic or manual mode, automatic start-up of turbines, working-hours counter, etc.

The machine may be equipped with a magnetic separator, vibration conveyor and variable frequency drive for the turbines.

Tumble rubber belt shot blasting machine with manganese steel belt

Machine Type G-150 G-250-1 G-450-1 G-750-2 G-1100-2 G-2000-2

Charging volume (l) 150 250 500 750 1100 2000

Max. recommended charging weight (kg) 300 500 1000 1500 2500 5000

Max. recommended piece weight (kg) 15 100 200 250 400 1000

Width of shotblasting chamber (mm) 850 1000 1100 1200 1700 2400

Diameter of shotblasting chamber (mm) 750 910 1200 1600 1450 1650

Total installed power (kw) 18.3 22.5 24 38 55 120

Diameter of throwing wheel (mm) 380 380 380 380 380 506

Power of abrasive throwing wheels (kW) 15 15 18.5 2*18.5 2*22 2*45

Air requirements (m3 / h) 2000 4500 5500 9600 12000 18000

Capacity of the machine (kg / h) 600 1000 2000 3000 4400 8000

Larger sizes are available, as are a huge range of options. Represented here are the Standard /Stock pre-engineered machines. Please contact us for further information.

Machines have a perpetual caterpillar made from steel flaps. Treated objects are put by a special filling contraction to caterpillar. When caterpillar moves its special shape causes treated objects to turn and roll, which causes the whole surface of the treated objects to be quality blasted in a jet of abrasive. For emptying, caterpillar is started-up in the opposite direction turning mode. Tumble belt of blasting machine with manganese steel belt, the volume of a particular filling may be up to 2,000 L, mass up to 5,000kg.

If you want to know more about shot blasting machine working principle, please visit our website.

As a shot blasting manufacturer, we will do our best to meet all the needs of customers.
