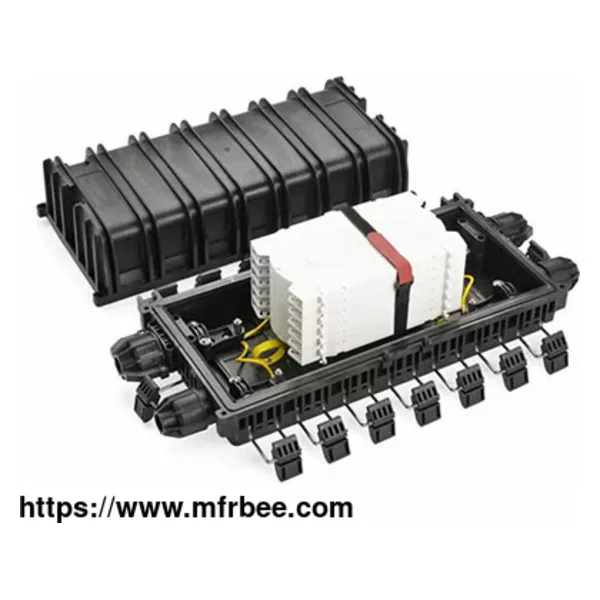

Fiber Splice Closures

FOB Price: USD $10.00 / Piece
Place Of Origin: Shenzhen

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Fiber Optic Splice Closures

The optical cable splice box solves the need for the limited length of the optical cable and the need for branching of the optical cable on the transmission line, provides conditions for the connection and branching of the optical cable and protects the joint.

Optical Fiber Splice Closure Installation Instruction

1. Make sure the optical fiber cable length in enclosure and break out length are enough.

A— cable fixing length B-- Cable with jacket length inside closure

C— Cable mini. length inside closure D— Break out cable length

2. Strip out cable outside jacket by pipe cutter and longitudinal stripper. The length is as per above instruction or as per using condition.

3. Cut off the cable port by hacksaw (recommended hacksaw cut position: approximately 10.0mm to 20.0mm hacksaw cut from tip of cable port), then open the cable port.

4. Put the stripped optical cable get through the heat shrinkable tube, closure cable port as per.

5. Fix the cable strengthen core by cable fixing column.

6. Put the stripped optical fiber into fiber splice tray, do splicing and storage.

Factors to Consider When Choosing Fiber Optic Closure





According to the environment used, choose the optical cable joint box such as overhead, direct burial, pipeline or underwater.



According to the structure of the optical fiber cable assembly used, treat the corresponding optical cable joint box.





Whether the installation function with optical splitter is required according to the network structure.





According to the type of optical fiber, choose single core or ribbon splice tray.

As a china fiber optic splice closure wholesaler, we will do our best to meet all the needs of customers.

If you are looking for reliable fiber optic products manufacturers, please contact us, and we will be your best partner.
